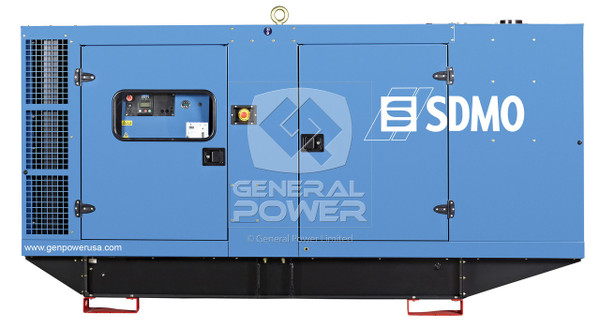

Discover the SDMO J200K Generator

The SDMO J200K is designed for supplying reliable emergency power in variable load applications. According to standard guidelines, the nominal power assigned by the genset is given for a 25°C air inlet temperature.

Key Specifications:

• Engine: John Deere 6068HF120-183
• Standby Power Output: 160 kWe / 200 kVA
• Prime Power Output: 145 kWe / 182 kVA
• Alternator: AT01132T
• Frequency: 50 Hz
• Voltage: 400/230 V
• EPA Compliance: Export Only
• Version: Open Skid (Also Available Enclosed)

Its mechanically welded chassis comes equipped with an anti-vibration suspension. Additionally, the unit includes a protective grille for the fan and rotating parts as a CE option.

Detailed J200K Engine Specifications

The John Deere engine features a turbo air inlet and an L-cylinder arrangement with six cylinders. It utilizes an air/air DC coolant system, providing a maximum standby power of 183 kW at 1500 RPM. The pump consumes 40.80 L/h at 100% load and 20.50 L/h at 50% load.

Control Your J200K Easily

The standard APM303 control panel is a versatile unit operating in manual or automatic mode. It monitors safety features like overspeed, oil pressure, and coolant temperature.

The optional TELYS panel offers a large display screen to track engine parameters like working hours, fuel level, and battery voltage.

Reliable Soundproof Enclosure Options

The M226 soundproofed enclosure guarantees an acoustic pressure level of 76 dB(A) at 1 meter.

This model features a length of 3508 mm, a width of 1200 mm, and a height of 1830 mm. It weighs 2320 kg dry and holds a 340 L tank capacity.
