T40UM IV - SDMO | 40 kW 40 kVA

Worldwide Warranty
Quick Shipping
24/7 Support
SKU:
T40UM IV
Availability:
IN STOCK, Same day shipping Worldwide available
EPA Compliant:
Export Only
Power Ratings:
40KW 40KVA Standby / 36KW 36KVA Prime
Condition:
Brand New, 2 Years International Warranty
Quality:
Load bank tested and ISO9001 certified
Reliability:
100% Made in USA and Europe (0% China)

OVERVIEW

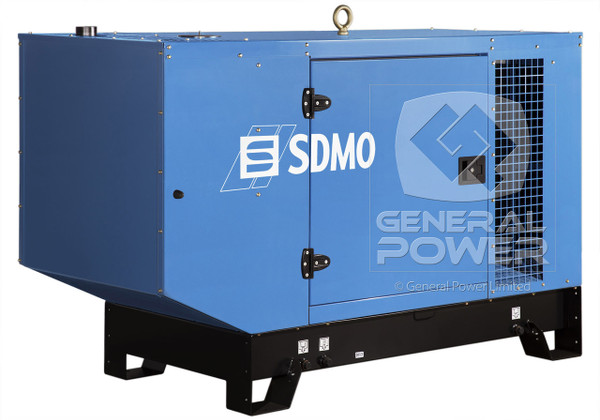

SDMO 40KW Generator 40KVA, Single Phase, Brand New, 100% Manufactured in Europe

T40UM IV SDMO Generator, Weatherproof Super Silent Enclosure, 2 year International Warranty

POWER RATINGS: 40KW (40KVA) STANDBY, 36KW (36KVA) PRIME, 60HZ, 1800RPM, 1PHASE, 1.0PF, V

●QUALITY: 100% designed, manufactured and individually load bank tested in Europe in state-of-the-art IS09001 facilities
●INTERNATIONAL WARRANTY: Comprehensive Parts, Labor, Travel time and Travel distance coverage for up to 2 YEARS or 2500 HOURS
●SOUND LEVELS: Super silent enclosure designed, tested and certified to meet and exceed North American Level 2 and European 2000/14EC Low sound level directives. Certifications available

POWERED BY PREMIUM HEAVY DUTY INDUSTRIAL COMPONENTS FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:

●MITSUBISHI S4S-DTSD, Turbocharged Heavy duty diesel engine, 4 stroke, 1800RPM, Liquid cooled, 100% Manufactured in Europe
●LEROY SOMER LSA432M345, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
●SCHNEIDER, Main line circuit breaker, 2pole, set mounted, wired and maximum output rated for complete generator protection
●SDMO APM303, Digital auto-start/stop control panel. All genset parameter, alarms and control functions. CE listed
●SDMO TELYS2, ADVANCED / 06x MULTILINGUAL, Digital auto-start/stop control panel with built-in Remote monitoring/control capability. All genset parameter, alarms and control functions. RS232 and RS485 (OPTIONAL)
●SDMO DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 100L / 26 gal

BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

●Open skid version (OR) IP56 rated Weather proof / Super Silent enclosure. 12 gauge electro-zinc coated steel for maximum corrosion resistance
●AUTO start/stop control feature included for remote start via 2-Wire dry contact
●12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR, SR7, +/- 1.0% regulation
●Radiator rated for T°of 50°C [122°F] max with mechanical fan
●Microprocessor based control panel
●12V charging alternator and 12V electrical starter motor
●12V charged DC starting battery with electrolyte and cables
●9dB(A) Industrial silencer ready to install (OR) 29dB(A) Critical class silencer installed inside the enclosure
●Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
●Mechanically welded chassis with anti-vibration isolators
●Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
●User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
●The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
●Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
●Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008

IP56 RATED WEATHER PROOF / SUPER SILENT ENCLOSURE FEATURES:

●12 gauge electro-zinc coated steel for maximum corrosion resistance (Phosphatizing degreasing, Non-chromic passivation, Osmosis purified rinsing and High durability polyester resin thermosetting powder paint)
●29dB(A) Internal-mounted critical silencer and flexible exhaust connector offering maximum component life and operator safety
●Fade-, scratch-, and corrosion-resistant. Automotive-grade textured finish resulting in advanced corrosion and abrasion protection as well as enhanced edge coverage and color retention
●Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film that meets UL 94 HF1 / FMVSS 302 flammability classification and repels moisture absorption
●Interchangeable modular panel construction. Allows complete serviceability or replacement without compromising enclosure design
●Service access. Multi-personnel doors for easy access to generator set control and servicing of the fuel fill, fuel gauge, oil fill, and battery
●Cooling air discharge. Weather protective design featuring a vertical air discharge outlet grille. Redirects cooling air up and above enclosure to reduce ambient noise
●Cooling/combustion air intake with a horizontal air inlet. Sized for maximum cooling airflow
●Heavy duty Polyamide plastic hinges, Dichromate galvanized bolting and Stainless steel rivets for lifetime longevity
●100% modular design, complete enclosure can be removed or installed in under 30 minutes, no disassembly required
●Meets and exceeds NFX41002 Salt spray test, NFT30049 UV Performance test, NFT30038 Paint adhesion test and 2000/14EC Low sound directives

DIMENSIONS AND WEIGHT:

DIMENSIONS OPEN: 1700mm [67in] x 896mm [35in] x 1223mm [48in], 730kg [1609lbs] Net
DIMENSIONS ENCL: 2080mm [82in] x 960mm [38in] x 1415mm [56in], 960kg [2116lbs] Net
