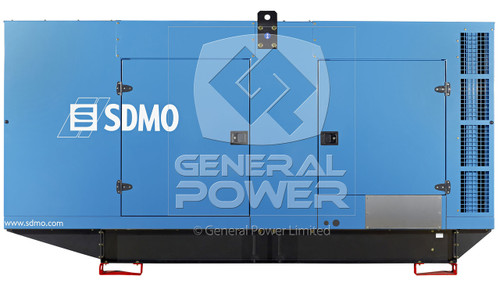

SDMO V400C2: Volvo-Powered Precision at 310 kWe Standby

The SDMO V400C2 is a Performance Class G3 diesel generator driven by a Volvo TAD1342GE engine and matched with an AT01630T alternator, built to deliver reliable 50 Hz standby and prime power across a wide range of commercial and industrial applications.

Rated at 310 kWe ESP and 281 kWe PRP at 400/230V, it combines Volvo's proven engine technology with a compact, well-engineered package ready for demanding duty cycles.

Key Specifications:

• ESP Rating: 310 kWe / 387 kVA at 400/230V
• PRP Rating: 281 kWe / 352 kVA at 400/230V
• Engine: Volvo TAD1342GE, 6-cylinder inline, turbocharged/air-to-air cooled
• Displacement: 12.78 C.I. with 131 x 158mm bore and stroke
• Compression Ratio: 18.1:1 at 1500 RPM with plus or minus 0.5% frequency regulation
• Fuel Consumption: 76 L/h at 100% load; 40 L/h at 50% load
• Cooling System: 44L capacity, Glycol-Ethylene coolant, max 107°C water temperature
• Alternator Efficiency: 93.3% at full load with THD below 2% on load
• Compact Version Dimensions: 3160 x 1340 x 1761mm with 470L integrated fuel tank
• Standard Control Panel: TELYS with optional APM802 upgrade
• Version: Enclosed (Fully Weather Proof Silent Enclosure)
• EPA Compliant: Export Only

The V400C2 ships complete with oil and coolant pre-filled to minus 30°C, a 24V charging alternator and starter, main line circuit breaker, and a 9 dB(A) silencer supplied separately. The mechanically welded chassis with antivibration suspension ensures stable, low-vibration operation from the moment of installation.

V400C2 Engine and Thermal Performance

The Volvo TAD1342GE delivers a maximum standby output of 333 kW at rated RPM, with a BMEP of 18.97 bar and piston speeds of 7.90 m/s for smooth, consistent power delivery. Heat rejection to exhaust reaches 213 kW with 144 kW transferred to coolant, all managed through a fan air flow capacity of 7.50 m3/s and a thermostat range of 82 to 92 degrees Celsius.

V400C2 Alternator and Electrical Quality

The AT01630T alternator achieves a continuous nominal rating of 365 kVA and a standby rating of 420 kVA, with total harmonic distortion held below 1.5% at no load and below 2% under full load.

Its brushless, direct-coupled design with Class H insulation, IP23 protection, and an unbalanced load acceptance ratio of 70% makes it a highly versatile choice for installations with variable or uneven load profiles.

Control Panel Options

The V400C2 comes standard with the TELYS control panel, a user-friendly unit featuring a large display screen, scroll wheel navigation, and full monitoring of electrical measurements, engine parameters, and fault alarms including overspeed, coolant temperature, and battery voltage.

For power plant environments such as hospitals, data centers, and industrial facilities requiring a higher level of control, the optional APM802 touchscreen controller offers IEC 61131-3 compliant customization, PLC communication functions, and a fully modular architecture designed for long service life and straightforward installation expansion.
