OVERVIEW

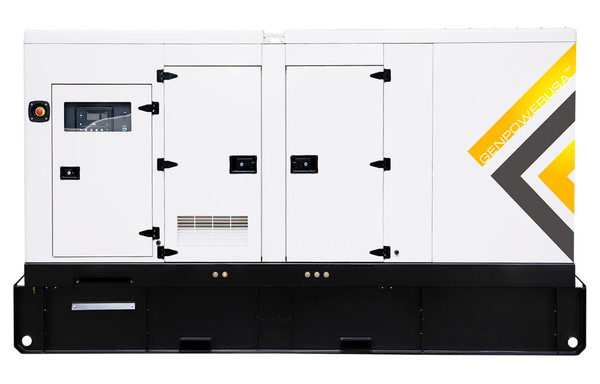

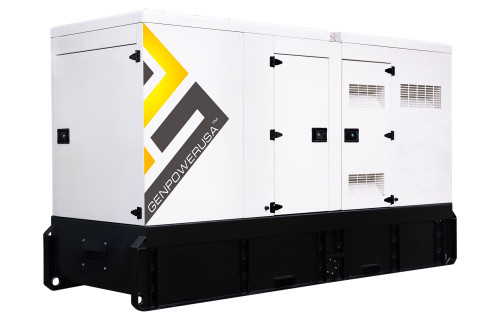

61KW 77KVA FTP (IVECO) POWERED MOBILE GENERATOR, “EPA/CARB TIER 4 FINAL”
-BRAND NEW
-MARINE-GRADE ALUMINUM ENCLOSURE
GENERATOR POWER RATINGS:
-61KW (77KVA) STANDBY, 56KW (70KVA) PRIME, 0.8PF, 60HZ, XXX/XXXV
EMISSIONS COMPLIANCE:
-U.S. EPA CARB TIER 4 FINAL compliant engine for Stationary Emergency, Stationary Prime, and Mobile Prime application as per current U.S. Environmental Protection Agency regulations
POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:

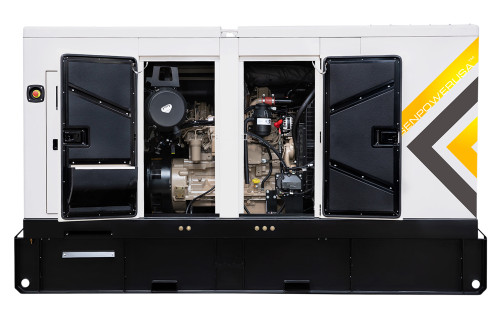

-FTP (IVECO) F34ETZK02.A73, 1800RPM, Turbocharged, air-to-air cooled
-Electronic isochronous governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve

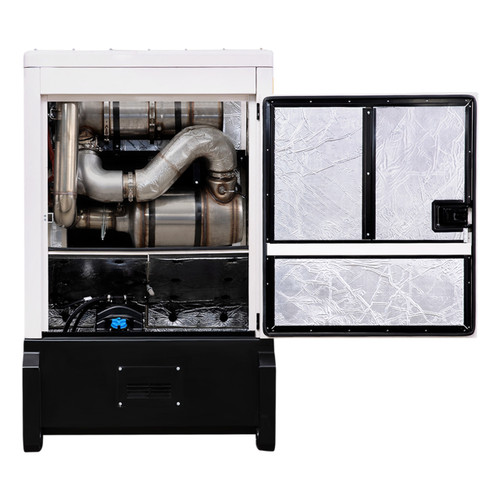

-DOC+EGR+SCR-only exhaust aftertreatment system. No DPF or regeneration
-5.2GAL (20L) DEF tank, 26-hours runtime @ 100% PRP
PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-STAMFORD UCI224F, 12 Leads, brushless
-Permanent Magnet Generator auxiliary excitation system (PMG)
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation
ADVANCED DIGITAL CONTROLLER:
-DEEP SEA ELECTRONIC DSE7320MKII, Microprocessor based generator controller, UL listed.
-User-friendly, 4-line back light LCD icon display, with on-screen line-diagram functionality.
-Manual, TEST, and Auto Operation Mode, with 2-wire remote start/stop capability.
-50 event log & 50+ Engine/ECU/Alternators alarms. Warning, Electrical Trip and Shutdown Alarms.
105-GAL, DOUBLE-WALLED, INTEGRAL METALLIC FUEL TANK FOR DAILY AUTONOMY:
-32-hours runtime autonomy @ 75% PRP
-24-hours runtime autonomy @ 100% PRP
-Electronic fuel level sender
-Programmable low-level, high-level alarms and shutdowns
RENTAL-GRADE FEATURES FOR COMPLETE MOBILITY, TOTAL VERSATILITY AND MAXIMUM ROI:
-DOUBLE-WALLED FUEL TANK: 105Gal (397L), double walled, integral metallic fuel tank with electronic fuel level sender for control panel readings, alarms and shutdowns. Double-walled construction with 110% containment capability and leak detection switch
-RUNTIME AUTONOMY (DIESEL): 32 Hours @ 75% load, 24 Hours @ 100% load
-ENVIRONMENTAL CONTAINMENT: 110% rated containment of oil, coolant and fuel
-EXTERNAL SHORE POWER CONNECTOR: Externally mounted quick-connector provide convenient access to power the battery charger and coolant heater
-EXTERNAL CONNECTION PORTS: 4x externally mounted quick access ports installed on the enclosure for fuel supply, fuel return, oil drain and coolant drain
-EMERGENCY STOP BUTTON: Recessed emergency-stop button
-BATTERY DISCONNECT SWITCH: Manually operated battery quick disconnect switch
-MAIN LINE BREAKER: ABB 250A, 3poles, manual main line circuit breaker
-SHUNT TRIP: 12VDC shunt trip
BRAND NEW AND FULLY PACKAGED RENTAL GENERATOR INCLUDES STANDARD:
-AUTO start/stop control feature included for remote start via 2-Wire dry contact
-Microprocessor based control panel
-12V charged DC starting battery with electrolyte and cables
-Mechanically welded chassis with anti-vibration isolators
-Each unit prototype and individually load bank tested prior to shipping in our Quality Controlled facilities in USA
-User guide, commissioning, and maintenance manual. Wiring diagrams included. (English)
-Compliant with ISO9001, ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530
ENGINEERED FOR PRIME POWER AND PEACE OF MIND:
-QUALITY: 100% engineered and individually load bank tested in USA
-INTERNATIONAL WARRANTY: Industry-leading Comprehensive Parts AND Labor coverage for up to 1 YEAR / 2000 HOURS Prime Service Duty
-SOUND LEVELS: Super silent enclosure designed to meet and exceed North American Level 2 and European 2000/14EC Low sound level directives
GENERATOR DIMENSIONS:
-SKID MOUNTED: Please refer to exact-configuration drawings
-TRAILER MOUNTED: Please refer to exact-configuration drawings
