GP-J80-60T3F-SA-FLEX 1-PHASE - John Deere | 80 kW 100 kVA

Worldwide Warranty
Quick Shipping
24/7 Support
SKU:
GP-J80-60T3F-SA-FLEX 1-PHASE
Availability:
IN STOCK, Same day shipping Worldwide available
EPA Compliant:
EPA Tier 3 TPEM FLEX Mobile Prime
Power Ratings:
80KW 100KVA Standby / 72KW 90KVA Prime
Condition:
Brand New, 1 Year International Warranty
Quality:
100% designed and assembled in USA
Reliability:
Individually certified and load bank tested in USA

OVERVIEW

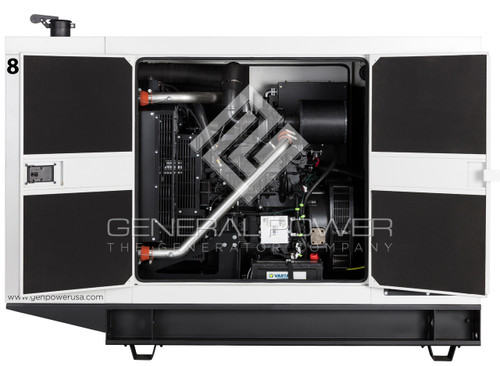

80KW 80KVA JOHN DEERE POWERED DIESEL GENERATOR SET, BRAND NEW

MODEL: GENPOWERUSA GP-J80-60T3F

QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN USA

POWER RATINGS:
80KW (80KVA) STANDBY, 74KW (74KVA) PRIME, 1PHASE, 1.0PF, 60HZ, 240/120V

EMISSIONS COMPLIANCE:
-U.S. EPA / TIER 3 FLEX compliant engine for Mobile Prime application as per current U.S. Environmental Protection Agency regulations

POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-JOHN DEERE 4045HF285-3126, 126HP, 1800RPM, Turbocharged
-Mechanical governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve

PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-LEROY SOMER TAL-044-D1-M1, 4 Leads, brushless, 100% Manufactured in Europe
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation

ADVANCED DIGITAL CONTROLLER:
-DEEP SEA ELECTRONICS DSE7320 MKII, Microprocessor based generator controller with dual-core main processor and extended memory. UL listed
-User-friendly, large, 4-line backlit LCD text display with support for up to 7 display languages
-Manual, Test and Auto Operation Mode with 2-wire remote start/stop capability
-250 event history log and
-50+ fully configurable alarms
-Automatic shutdowns: Under/Over voltage; Over load; Over current; Under/Over frequency; Under/Over speed; High coolant temperature; Low oil pressure; Low coolant level

VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty steel skid with sloped-surface basin design for 110% containment of engine fluids
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access. Single-side, right-facing
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Battery disconnect switch
-Oil drain extension with in-line valve

ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping with pride and care in our factory in USA
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)

PHOTOS, TECHNICAL LITERATURE, STANDARD FEATURES AND ONLINE LIBRARY LINK:
Click here: http://bit.ly/GP-J80-60T3F1PH
