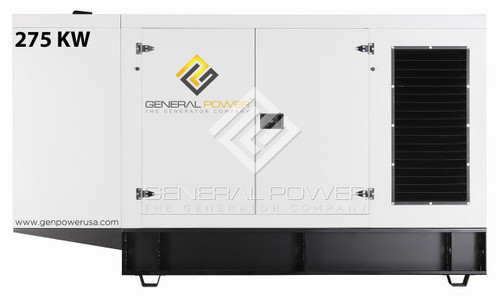

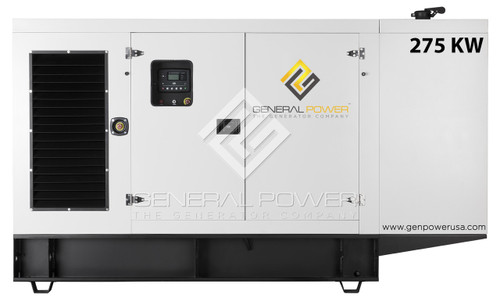

GP-J275-60T3-3PHASE - John Deere | 275 kW 344 kVA Diesel Generator

Powering critical operations demands equipment that won't let you down when it matters most. The GP-J275-60T3-3PHASE pairs a heavy duty John Deere engine with a Leroy Somer alternator to deliver dependable standby power for facilities that can't afford downtime.

• 275 kW / 343.75 kVA standby power output, three phase
• John Deere 6090HF484-2422 engine, turbocharged and aftercooled, 9L displacement
• Leroy Somer TAL-046-G alternator with IP23 protection and Class H insulation
• Deep Sea DSE7320 digital controller with auto start/stop and CANBUS connectivity
• Integral fuel tank, 132 gallons (500 liters), with electronic fuel level sender
• Accepts 100% rated load in a single step per NFPA110 and ISO8528-5 Class G-3
• Mechanically welded steel chassis with vibration isolators
• 12V DC electric starter with charging alternator and starting battery included
• Compliant with ISO3046, ISO8528, BS4999, BS5514, and ISO9001:2000
• Version: Enclosed (Fully Weather Proof Silent Enclosure)
• EPA Compliant: EPA Tier 3 Stationary Emergency

Every unit ships as a complete, fully packaged system rather than a collection of separate components, so installation and commissioning stay straightforward. Each generator is factory load bank tested as an individual prototype before it ever leaves the plant, giving you confidence in performance from day one.

Engineered Around a Proven John Deere Engine

At the core of this unit is the John Deere 6090HF484-2422, a 6-cylinder, 4-stroke diesel engine running at 1800 RPM with a 16.0:1 compression ratio and an electronic governor for tight speed control. It produces a maximum standby rating of 315 kW (422 HP), giving the system headroom above its rated output.

Fuel efficiency is strong across load ranges, consuming roughly 71.3 L/hr at 100% prime load, 61.6 L/hr at 75%, and 43.6 L/hr at 50%. With the standard 132 gallon integral tank, the unit can run approximately 7 hours at 100% prime load or 8 hours at 75%, and runtime extends dramatically with optional external tanks, up to 106 hours at 100% load with a 2000 gallon tank.

GP-J275-60T3-3PHASE Voltage and Amperage Configurations

This generator is available across multiple voltage configurations to match your facility's electrical requirements. At 480/277V, it delivers 272 kW ESP and 240 kW PRP with 409 standby amps. Other available configurations include 440/254V, 240/120V Delta, 220/127V, and 208/120V, each rated for 270 kW ESP and 240 kW PRP with amperage ratings scaled accordingly for the specific voltage.

All configurations are three phase. Understanding the difference between the two power ratings matters here: PRP (Prime Power) supports unlimited annual operating hours in variable load applications, while ESP (Standby Power) is intended specifically for emergency power supply and does not allow for overload.

Reliable Alternator and Digital Control

The Leroy Somer TAL-046-G alternator features a 4-pole, self-excited design with an optional PMG configuration, direct single bearing coupling, and voltage regulation held tight at plus or minus 1.0% across the full 0 to 100% range. Pairing this with the Leroy Somer R150 AVR ensures stable output even under fluctuating loads.

Control comes from the Deep Sea DSE7320 panel, offering a 132x64 LCD display, a 250 event fault log, remote monitoring via Ethernet, RS485, or SMS, and full alarm and shutdown protection for coolant temperature, oil pressure, voltage, and current.

Weatherproof Enclosure Built for Longevity

Housed in the GP-6068-6090 enclosure, the unit is constructed from 12 gauge electro-zinc powder coated steel for corrosion resistance, with up to 51mm of acoustic insulation and a 29dB(A) internal silencer for reduced noise output. Multi-personnel access doors, an externally mounted emergency stop, and a tamper proof viewing window support easy servicing and safe operation in the field.

Customizable Accessories for the GP-J275-60T3-3PHASE

Available options include UL142 listed fuel tanks from 50 to 10,000 gallons, UL1008 listed automatic transfer switches from 50 to 3000 amps, DOT compliant trailers, and the DSE8610 paralleling controller for multi-generator installations requiring load sharing across up to 32 units.
