SDMO X3200U Diesel Generator

The SDMO X3200U is a heavy duty diesel generator built for industrial and commercial applications that demand serious, reliable power. Powered by an MTU 20V4000G83LF engine paired with an LSA 54 M75 alternator, this unit delivers massive output while maintaining the durability SDMO is known for.

• Standby power (ESP): 3200 kWe / 4000 kVA
• Prime power (PRP): 2800 kWe / 3500 kVA
• Data Center Continuous power (DCC): 2800 kWe / 3500 kVA
• Voltage: 480/277V, three phase, 60 Hz
• Standby amps: 4811
• Engine: MTU 20V4000G83LF, turbocharged V20 configuration
• Alternator: LSA 54 M75 with electronic AVR
• Dry weight: 18,685 kg (compact version)
• Dimensions: 5730mm L x 2250mm W x 2454mm H
• Governor type: Electronic

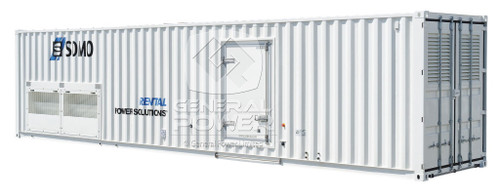

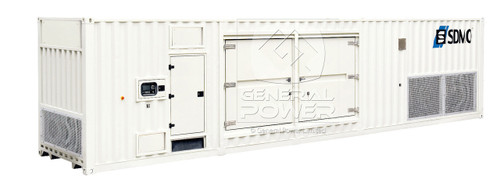

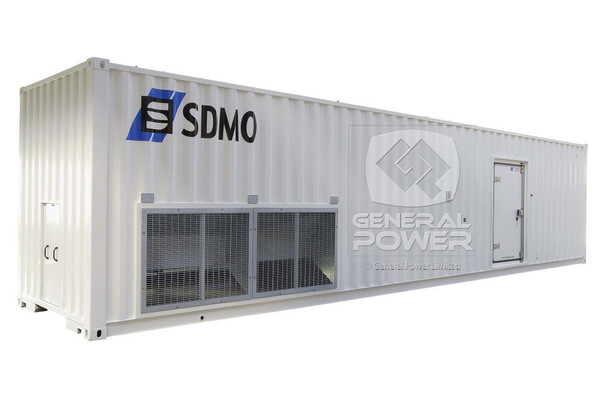

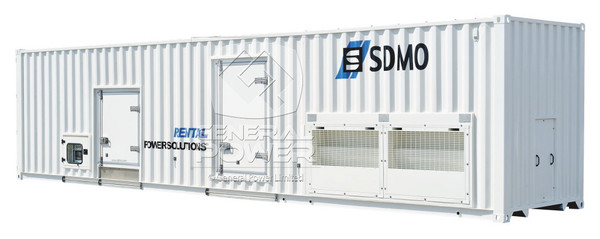

• Version: Enclosed (Fully Weather Proof Silent Enclosure)
• EPA Compliant: Export Only

This generator is engineered for facilities where downtime isn't an option, including data centers, hospitals, and large industrial sites. With a maximum standby rating of 3311 kW at rated RPM, the X3200U provides the headroom needed for demanding electrical loads.

Engine Performance Built for the X3200U's Demands

At the heart of the X3200U is the MTU 20V4000G83LF, a 20 cylinder turbocharged engine running at 1800 RPM with a displacement of 95.33 cubic inches. The engine uses an air/water DC cooling configuration, with a bore and stroke of 170mm x 210mm and a compression ratio of 16.4. Frequency regulation is held to a tight tolerance of plus or minus 0.5 percent, which matters when powering sensitive equipment.

Fuel efficiency numbers give a clear picture of operating costs across load ranges. At 100 percent load, consumption sits at 700 L/hr, while a 110 percent overload draws 778 L/hr. At half load, consumption drops to 357 L/hr, giving operators flexibility depending on demand. The oil system holds 300 liters, with a carter capacity of 340 liters, supporting extended run times between service intervals.

Alternator Specifications

The LSA 54 M75 alternator paired with the X3200U is rated for a continuous nominal output of 3900 kVA at 40°C and a standby rating of 4290 kVA at 27°C, with an efficiency of 96.2 percent at full load. It runs on a single bearing with direct coupling and no collar or brush technology, reducing maintenance points and improving long term reliability. Total harmonic distortion stays under 3.5 percent at no load, an important factor for facilities running sensitive electronics or IT infrastructure.

The AVR regulated system also includes short circuit maintenance capability at 3 times rated current for 10 seconds, giving added protection during fault conditions.

Control Panel Options for the X3200U

Buyers can choose between three control panel options depending on operational needs. The M80 functions as a dual purpose control unit, offering a direct read instrument panel with tachometer, working hours counter, coolant temperature indicator, and emergency stop functionality.

For more advanced monitoring, the TELYS panel adds a large display screen with a navigation wheel, tracking electrical measurements, engine parameters, and a full range of alarms and faults. It also supports remote operation software and USB or PC connectivity.

The APM802 is the top tier option, built specifically for power plant management in hospitals, data centers, banks, and industrial settings. It features a full touch screen interface compliant with IEC 61131-3 and supports PLC style customization for complex installations.

Why Choose the SDMO X3200U

With a mechanically welded chassis, antivibration suspension, and exhaust compensators with flanges, the X3200U is designed to hold up under continuous industrial use. It ships with oil already included along with a full manual for installation and operation, making it ready to deploy for critical power applications.
