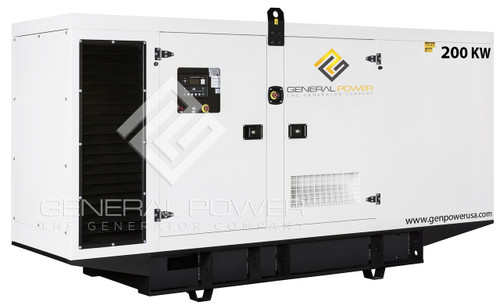

GP-J200-60T3: 200 kW John Deere Diesel Generator

When your operation demands reliable backup power without compromise, the GP-J200-60T3 delivers. Built around a proven John Deere diesel engine and fully factory-tested, this generator set is engineered for facilities that simply cannot afford downtime.

• Engine: John Deere 6068HF485, 6.8L turbocharged & aftercooled, 6-cylinder inline, 1800 RPM
• Output: 200 kW / 250 kVA standby; 180 kW / 225 kVA prime power
• Voltage options: Available from 208/120V to 480/277V, three-phase configurations
• Alternator: Leroy Somer TAL-046-C with R250 AVR, Class H insulation, +/-1.0% voltage regulation
• Controller: DeepSea DSE7320 with auto start/stop, 132x64 LCD display, and remote monitoring via Ethernet/RS485
• Fuel consumption: 14.0 gal/hr at 100% load; 10.5 gal/hr at 75% load; 7.4 gal/hr at 50% load
• Fuel autonomy: Up to 10 hours at 75% load on the integral 100-gallon tank, or up to 48 hours with a 500-gallon external tank
• EPA Compliance: U.S. EPA Tier 3, NFPA 110, ISO8528-5 Class G-3, CE and UL compliant
• Starting system: 12V DC electric starter, 12V charging alternator, and included battery with cables
• Load acceptance: Accepts 100% rated load in a single step per NFPA 110 with ISO8528-5 G-3 transient response
• Version: Enclosed (Fully Weather Proof Silent Enclosure)

EPA Tier 3 compliant for stationary standby applications, the GP-J200-60T3 is prototype and individually load bank tested at the factory, giving you confidence when the grid fails.

GP-J200-60T3 Engine & Fuel Performance

The John Deere 6068HF485 engine produces a maximum standby output of 235 kW (315 HP), with a 17.0:1 compression ratio and electronic governor for precise load management. Pair it with an optional 500-gallon external tank and you gain up to 48 hours of runtime at 75% load, ideal for extended outages or remote deployments.

Enclosure & Protection Options for the GP-J200-60T3

The optional GP-6068 weatherproof enclosure features 12-gauge powder-coated steel, up to 2 inches of acoustic insulation, and a 29 dB(A) critical silencer for near-silent operation in noise-sensitive environments.

Accessories & Upgrades

Customize your system with UL142-listed double-wall fuel tanks (50 to 5,000 gallons), UL1008 automatic transfer switches (100 to 4,000A), road trailers, engine preheaters, and the optional DeepSea DSE8610 paralleling controller for multi-generator configurations of up to 32 units.
