ACBCJD200-60T3F - John Deere | 200 kW 250 kVA Diesel Generator

When your facility needs dependable backup power without unnecessary complexity, the ACBCJD200-60T3F delivers. This unit combines a proven John Deere engine with a Stamford alternator, packaged by Broadcrown into a reliable 200 kW standby system built for real world operating conditions.

• 200 kW / 250 kVA standby power rating, 3-phase, 60 Hz
• John Deere 6068 HF485 engine, EPA Tier 3 Flex compliant
• CGT Stamford UCI 274 alternator, single bearing design
• Power factor of 0.8, with voltage regulation held to plus or minus 1.0%
• BC 7310 digital auto start control system based on Deep Sea DSE7310
• Standard fuel tank capacity of 394 liters (104 gallons)
• Fully welded steel skid base with fork lift pockets
• Heavy duty rubber anti-vibration mountings
• Main line circuit breaker and factory test certificate included
• Dry weight of 2568 kg (5661 lb), operating weight of 2995 kg (6602 lb)

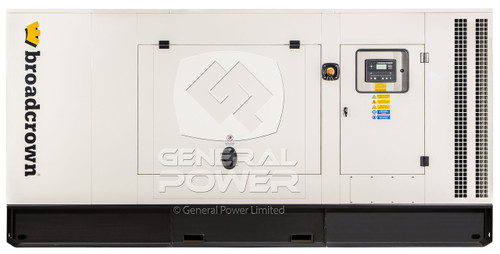

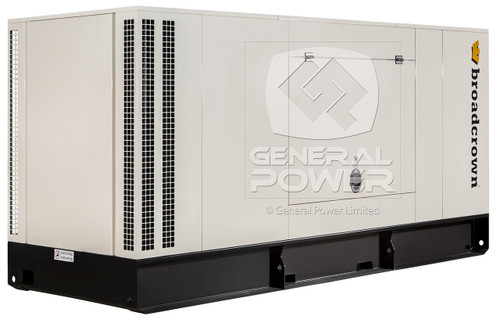

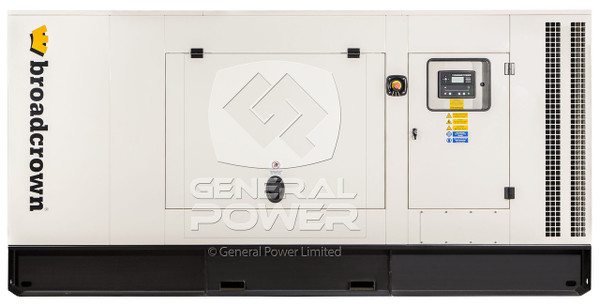

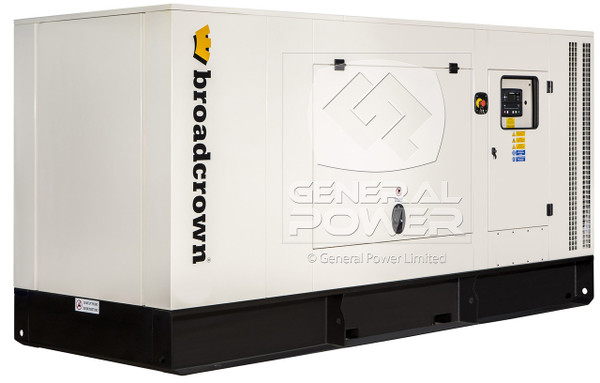

• Version: Enclosed (Fully Weather Proof Silent Enclosure)
• EPA Compliant: EPA Tier 3 Stationary Emergency

Every unit comes backed by a factory test certificate and full operation and maintenance manual, so you know exactly what you're getting before it ever reaches your site. Whether you're supporting a commercial building or an industrial process, this generator is sized to handle the load reliably while keeping fuel consumption and footprint reasonable.

John Deere Power Behind the ACBCJD200-60T3F

The 6068 HF485 engine is a 6-cylinder, inline, 4-stroke diesel with turbocharged air to air aftercooling, delivering a gross standby power of 235 kWm (315 bhp) at 1800 RPM. Electronic governing through the ECU and CANBus system keeps engine response precise under changing loads, while a bore and stroke of 106mm by 127mm across 6.8 liters of displacement provides the durability this platform is known for.

Fuel consumption comes in at 58.6 L/hr at 100% standby power, dropping to 42.8 L/hr at 75% and 29.9 L/hr at 50%, giving operators predictable running costs across a range of load profiles. The engine is rated for altitude up to 3000 meters (10,000 ft), making it suitable for a wide range of installation sites.

Voltage Configurations and Power Ratings

This generator is offered across five common voltage configurations, all delivering consistent output. At 480/277V, 440/254V, and 416/240V, the unit provides 238 kVA / 190 kWe prime power and 250 kVA / 200 kWe standby power, with standby amps ranging from 301 to 347 depending on voltage.

The 240/138V and 220/127V configurations maintain the same kW and kVA ratings but scale amperage up to 601 and 656 amps respectively. Prime power is intended for continuous variable load applications where the average load doesn't exceed 70% of the rating, with a 10% overload allowance for one hour in twelve. Standby power, by contrast, is reserved for emergency use up to 500 hours annually with no overload permitted.

Stamford Alternator and Digital Control System

Power generation comes from the CGT Stamford UCI 274, a 4-pole, 3-phase alternator with Class H insulation and self-excitation through an SX 460 AVR. The standard BC 7310 control system provides full manual and automatic remote start capability, LCD display of coolant temperature, oil pressure, voltage, amperage, frequency, and power factor, along with RS485 telemetry and an automatic cool-down timer. Operators needing mains monitoring or synchronization capability can upgrade to the BC 7320, BC 8610, or BC 8620 control systems.

Enclosure and Site Considerations for the ACBCJD200-60T3F

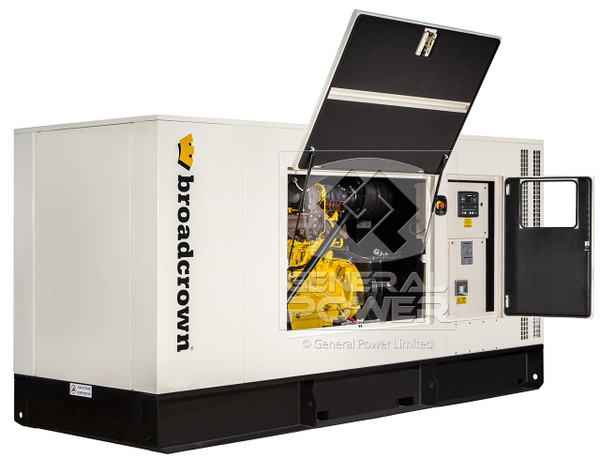

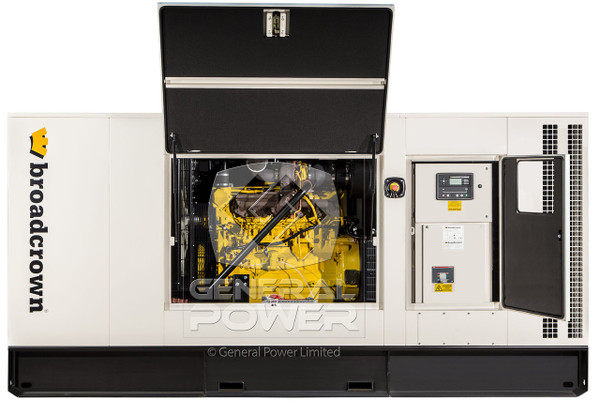

For installations requiring outdoor protection, the optional Canopy 4 acoustic enclosure reduces sound pressure to 79 dB(A) at one meter while adding weather resistance and security through gull-wing doors and heavy duty locks. Additional options span electronic governors, alternative fuel systems with integral bunds, coolant heaters, and enhanced exhaust silencing, allowing this generator to be tailored to nearly any site requirement or noise ordinance.
