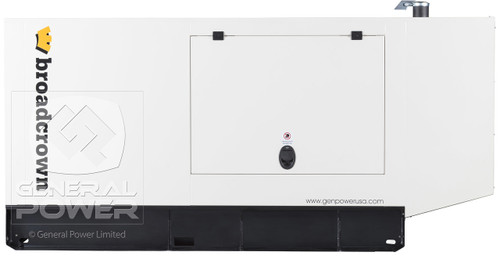

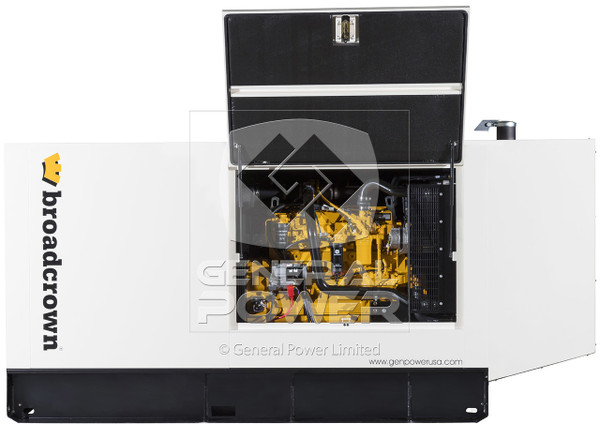

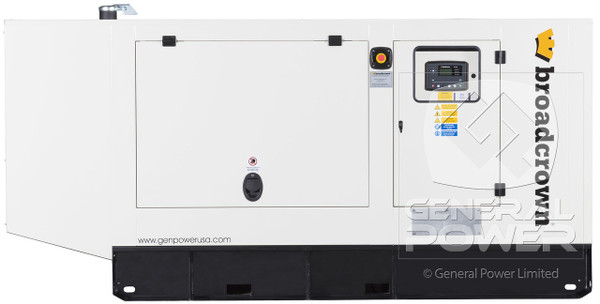

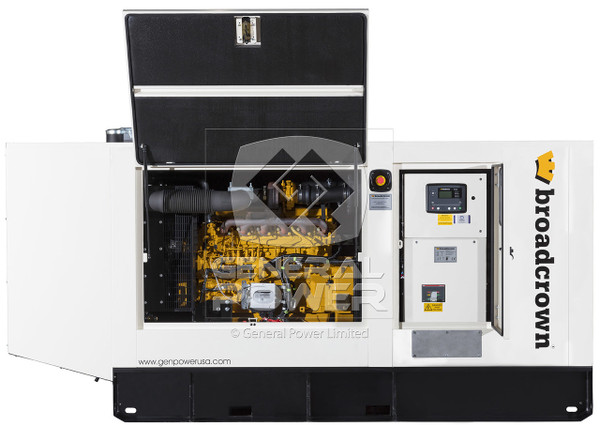

JOHN DEERE powered 125 KW Generator 156 KVA, Three Phase, Brand New
ACBCJD125 Broadcrown Generator, Silent type, Export only

The BCJD 125-60 is a reliable generator designed to meet your energy needs. This robust unit provides exceptional performance utilizing an efficient water-cooled diesel engine.

• Engine: John Deere 6068 TF258.
• Alternator: Single bearing CGT Stamford UCI 274.
• Phase: 3-Phase power configuration.
• Frequency: 60 Hz.
• Prime Power: 112 kWe at 480/277 Volts.
• Standby Power: 125 kWe at 480/277 Volts.
• Version: Enclosed (Fully Weather Proof Silent Enclosure)

All power ratings and reference conditions are in accordance with ISO 8528-1 and ISO 3046-1. Customers can rely on this unit where the average variable load does not exceed 70% of prime power.

Control Systems of the BCJD 125-60

The standard control system for this model is the BC 7210 Auto Start system, based on the DSE 7210 control module.

This advanced module provides automatic remote start alongside safeguards like overspeed, underspeed, low oil pressure, and high coolant temperature protection. It includes digital displays for volts, amps, frequency, and operating hours.

Optional Acoustic Enclosure

For operation in harsh outdoor environments, an optional acoustic enclosure called Canopy 3 is available.

This canopy delivers excellent security and acoustic performance, utilizing fire-retardant polyurethane foam to meet EU Legislation 2000/14/EC requirements. Exhaust noise is minimized by internally mounted high-performance exhaust silencers.

Additional Features of the BCJD 125-60

Investing in the BCJD 125-60 ensures a machine equipped with a fully welded steel skid base featuring forklift pockets. The setup includes heavy-duty rubber anti-vibration mountings, an integral fuel tank with a filler cap, and a factory test certificate. The open set has an operating weight of 1675 kg.
