ACBCC100-60: 100 kW Cummins Diesel Generator

For commercial and industrial facilities that need dependable mid-range backup power in a quiet, weather-resistant package, the ACBCC100-60 delivers proven Cummins performance inside Broadcrown's Canopy 3 acoustic enclosure. Powered by the turbocharged Cummins 6BTA5.9-G6 engine and paired with a CGT Stamford UCI 274 alternator, this generator set is factory tested and built to ISO 8528-1 and ISO 3046-1 standards.

• Engine: Cummins 6BTA5.9-G6, 5.9L, 6-cylinder inline, 4-stroke, turbocharged and charge air cooled, 1800 RPM, Bosch mechanical governor
• Output: 100 kW / 125 kVA standby (ESP); 91 kW / 114 kVA prime (PRP), three-phase, 0.8 power factor
• Voltage options: Available from 220/127V to 440/254V, 60 Hz configurations
• Alternator: CGT Stamford UCI 274 C, self-excited, Class H insulation, 4-pole, single bearing, direct coupling, +/-1.0% voltage regulation, AS480 AVR
• Fuel consumption: 34.5 L/hr (9.1 gal/hr) at 100% standby load; 30.7 L/hr (8.1 gal/hr) at 100% prime load; 22.4 L/hr (5.9 gal/hr) at 75% prime load
• Controller: BC 7210 Digital Auto Start with automatic remote start, LCD display of volts, amps, frequency, and engine hours
• Starting system: 12V DC electric starter, separate engine-driven battery charging alternator, 12V 660 CCA battery included
• Open set dimensions: 2700mm x 801mm x 1808mm (107in x 32in x 75in); dry weight 1735 kg (3825 lbs)
• Canopy 3 enclosure: 3550mm x 1160mm x 1800mm; 79 dB(A) at 1m, 69 dB(A) at 7m; integral 425L tank; optional 377L bunded tank
• Standards: ISO 8528-1, ISO 3046-1, EU Legislation 2000/14/EC acoustic compliance
• Version: Enclosed (Fully Weather Proof Silent Enclosure)

Built and production tested by Broadcrown, the ACBCC100-60 is an export-ready solution for commercial facilities, hospitality, light industry, and critical infrastructure across Latin America, the Caribbean, and international markets requiring reliable enclosed standby power.

ACBCC100-60 Engine and Fuel Performance

The Cummins 6BTA5.9-G6 delivers a standby gross power of 132 kWm (177 bhp) at 1800 RPM, with a net standby output of 122 kWm (164 bhp) after fan losses, and a BMEP of 1496 kPa (217 psi) at standby rating.

Total coolant capacity is 25 liters, engine coolant capacity is 9.1 liters, and oil capacity including filters is 16.4 liters, with a minimal typical oil consumption of 0.08 L/hr during extended operation.

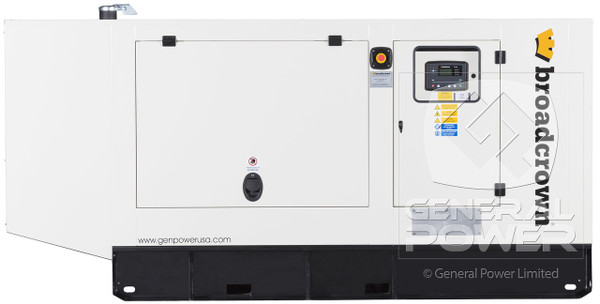

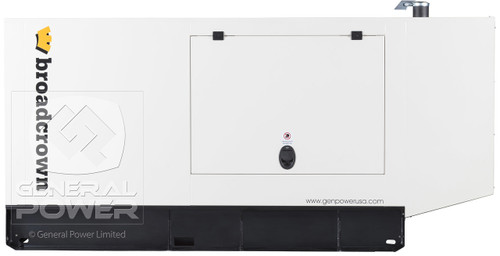

ACBCC100-60 Canopy 3 Enclosure

The Canopy 3 acoustic enclosure is designed for harsh outdoor environments, with all steel components pre-treated and polyester powder coated in RAL9001 white with a RAL9005 black baseframe.

Fire-retardant polyurethane foam acoustic insulation and internally mounted high-performance exhaust silencers reduce sound to 79 dB(A) at 1 meter and 69 dB(A) at 7 meters, meeting EU Legislation 2000/14/EC.

Key access features include gull-wing doors with gas struts, a panel and breaker access door with viewing window, heavy-duty locks on all doors, an externally mounted emergency stop button, and full fork lift pocket and lifting point provisions.

Control System Options for the ACBCC100-60

The standard BC 7210 Digital Auto Start controller handles automatic and manual remote start with full overspeed, underspeed, low oil pressure, and high coolant temperature protection.

Upgrade to the BC 7310/7320 for RS485 telemetry, SAE J1939 CANBus, kW/kVA/power factor display, and over/under voltage and over current protection, or choose the BC 8610/8620 for set-to-set or set-to-mains synchronization in multi-generator applications.
