040 KW YANMAR Generator 40 KVA, Single phase, HIPOWER HYW-45-M6-SA

Product Description | Downloads & Datasheet

Price
$0.00
Savings:
Part Number:
HYW-45-M6-SA
Availability:
IN STOCK, Same day shipping Worldwide available
EPA Compliant:
TPEM U.S. EPA Tier 2 Flex (Stationary / Mobile)
Power Ratings:
40KW 40KVA Standby / 36KW 36VA Prime
Condition:
Brand New, 2 Years International Warranty
Quality:
Load bank tested and ISO9001 certified
Reliability:
100% Made in USA and Europe (0% China)

Quantity:

Reviews:



Product Description

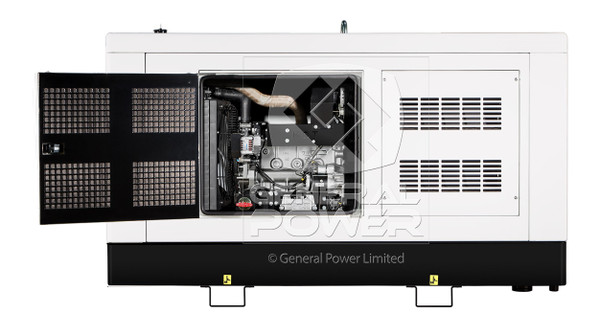

40 KW HIPOWER Diesel Generator 40 KVA, Single phase, Enclosed type, EPA compliant, HYW-45-M6-SA, Brand New, 2 Years Warranty

  • YANMAR 4TNV98T, Turbocharged Heavy duty diesel engine, 4 stroke, 4 Cylinders, 1800RPM, Liquid cooled, Electronic governor, U.S. EPA / CARB Tier i4 compliant
  • STAMFORD CUMMINS UCI224D, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
  • SCHNEIDER, Main line circuit breaker, 2/3pole, set mounted, wired and maximum output rated for complete generator protection. CSA and UL LISTED
  • HIPOWER CEM7, Digital auto-start/stop control panel. All genset parameter, alarms and control functions. CE listed
  • HIPOWER DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 100L (26 gal) (10 hours runtime autonomy @ 75% load)



BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

  • IP56 rated Weather proof / Super Silent enclosure. 12 gauge electro-zinc coated steel for maximum corrosion resistance
  • AUTO start/stop control feature included for remote start via 2-Wire dry contact
  • U.S. EPA / CARB TIER i4 compliant engine as per current U.S. Environmental Protection Agency regulations
  • Engine Governor and Regulation: Electronic Isochronous for extremely accurate +/-0.5% speed regulation
  • 12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR, AS480, +/- 1.0% regulation
  • Radiator rated for T° of 50°C [122°F] max with mechanical fan
  • Microprocessor based control panel
  • 12V charging alternator and 12V electrical starter motor
  • 12V charged DC starting battery with electrolyte and cables
  • 12V charged DC starting battery quick disconnect switch
  • 29dB(A) Critical class silencer installed inside the enclosure
  • Cartridge type Heavy duty 2-stage Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
  • Mechanical Oil elevation pump for effortless maintenance
  • Mechanically welded chassis with anti-vibration isolators
  • Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
  • User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
  • The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
  • Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
  • Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008



IP56 RATED FULLY WEATHER PROOF / SUPER SILENT ENCLOSURE FEATURES:

  • 12 gauge electro-zinc coated steel for maximum corrosion resistance (Phosphatizing degreasing, Non-chromic passivation, Osmosis purified rinsing and High durability polyester resin thermosetting powder paint)
  • 29dB(A) Internal-mounted critical silencer and flexible exhaust connector offering maximum component life and operator safety
  • Fade-, scratch-, and corrosion-resistant. Automotive-grade textured finish resulting in advanced corrosion and abrasion protection as well as enhanced edge coverage and color retention
  • Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film that meets UL 94 HF1 / FMVSS 302 flammability classification and repels moisture absorption
  • Interchangeable modular panel construction. Allows complete serviceability or replacement without compromising enclosure design
  • Service access. Multi-personnel doors for easy access to generator set control and servicing of the fuel fill, fuel gauge, oil fill, and battery
  • Cooling air discharge. Weather protective design featuring a vertical air discharge outlet grille. Redirects cooling air up and above enclosure to reduce ambient noise
  • Cooling/combustion air intake with a horizontal air inlet. Sized for maximum cooling airflow
  • Heavy duty Polyamide plastic hinges, Dichromate galvanized bolting and Stainless steel rivets for lifetime longevity
  • 100% modular design, complete enclosure can be removed or installed in under 30 minutes, no disassembly required
  • Meets and exceeds NFX41002 Salt spray test, NFT30049 UV Performance test, NFT30038 Paint adhesion test and 2000/14EC Low sound directives



GENERATOR POWER RATINGS, DIMENSIONS AND WEIGHT:

  • STANDARD POWER RATINGS: 43 KW (43 KVA) STANDBY, 40 KW (40 KVA) PRIME, 60 HZ, 1800 RPM, 1 PHASE, 1.0 PF
  • STANDARD VOLTAGES AVAILABLE: 240/120V
  • DIMENSIONS ENCLOSED SUPER SILENT TYPE: 2100mm [82.7in] x 975mm [38.4in] x 1379mm [54.3in], 1005kg [2216 lbs] Net
