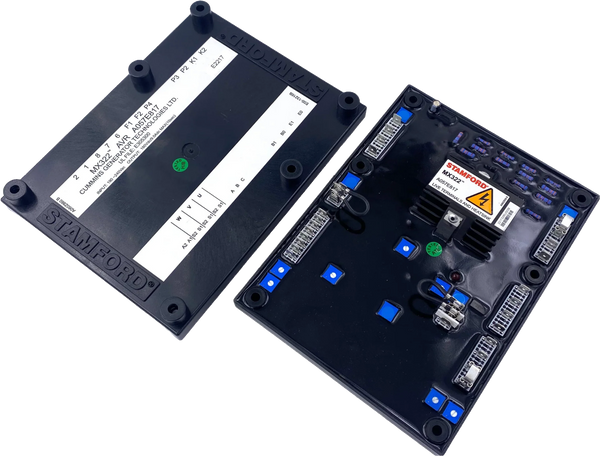

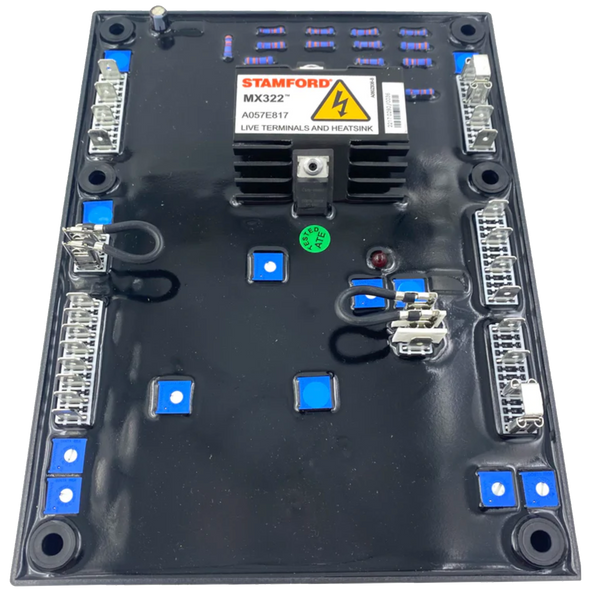

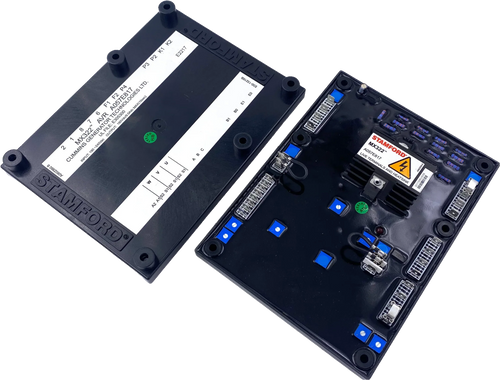

STAMFORD MX322 AVR - Premium Automatic Voltage Regulator for Industrial Generator Applications

The STAMFORD MX322 automatic voltage regulator represents a pinnacle of engineering excellence in generator voltage control technology. As one of the most sophisticated AVR units in the STAMFORD lineup, the MX322 delivers unparalleled voltage regulation precision for demanding industrial and commercial power generation applications. This advanced voltage regulator incorporates cutting-edge circuitry designed to maintain stable electrical output under varying load conditions, making it the preferred choice for critical power systems worldwide. General Power is proud to offer this genuine OEM STAMFORD MX322 AVR (part number A062Y338) as an authorized dealer, ensuring you receive authentic factory-direct components backed by manufacturer warranties and our commitment to same-day shipping on in-stock items.

The MX322 voltage regulator stands out in the marketplace due to its comprehensive feature set that addresses the most challenging generator control requirements. Unlike basic AVR units, the MX322 incorporates three-phase sensing capability, allowing it to monitor and respond to voltage variations across all three phases simultaneously. This tri-phase monitoring ensures balanced output and prevents single-phase voltage drift that can damage sensitive electronic equipment. The integrated short circuit limiter provides essential protection during fault conditions, automatically reducing excitation to protect the alternator windings from catastrophic damage. Additionally, the over-voltage adjustment feature gives technicians precise control over protection thresholds, while the innovative DWELL function makes this AVR particularly valuable when paired with turbocharged engines that have limited block load acceptance capabilities.

Technical Specifications and Features of the STAMFORD MX322 AVR

Key Features That Make the MX322 AVR Superior

• Three-Phase Sensing Technology: The MX322 monitors all three phases independently, ensuring balanced voltage output and preventing phase imbalance issues that plague lesser AVR units
• Advanced Short Circuit Protection: Integrated current limiting circuitry protects your valuable alternator investment during fault conditions without requiring external components
• Adjustable Over-Voltage Protection: Customizable voltage ceiling settings allow precise calibration for specific application requirements and equipment protection needs
• DWELL Function: Specifically engineered for turbocharged engine applications, this feature manages voltage recovery timing to accommodate engine response characteristics during rapid load changes
• Robust Environmental Protection: Conformal coated circuit board resists moisture, dust, salt spray, and chemical contamination for reliable operation in harsh industrial environments
• Wide Operating Temperature Range: Functions reliably from -40°C to +70°C, making it suitable for arctic installations and tropical climates alike
• Universal Compatibility: Designed to interface with a wide range of STAMFORD alternators and can be adapted to many competitive brands
• Field-Proven Reliability: Thousands of installations worldwide demonstrate the exceptional durability and longevity of the MX322 design

Compatible STAMFORD Alternator Models

The STAMFORD MX322 AVR serves as the standard or optional voltage regulator for numerous STAMFORD alternator series. This genuine OEM voltage regulator is factory-specified for and fully compatible with the following alternator families:

• STAMFORD HC Series: HC634 and other high-current industrial alternator models
• STAMFORD L Series: Various L-frame alternators requiring advanced voltage regulation
• STAMFORD S Series: Select S-frame models with three-phase sensing requirements
• STAMFORD P Series: Premium industrial alternators in marine and industrial applications
• STAMFORD UCI Series: Certain UCI industrial alternator configurations
• STAMFORD HCI Series: High-current industrial models requiring sophisticated voltage control

Beyond STAMFORD's own product line, the MX322 can often be retrofitted to competitive alternator brands as an upgrade from less capable voltage regulators. If you're uncertain about compatibility with your specific alternator model, our technical support team at General Power can provide definitive guidance based on your alternator nameplate data and application requirements.

Installation Overview for the MX322 Automatic Voltage Regulator

Installing the STAMFORD MX322 AVR requires attention to proper connections and configuration to ensure optimal performance. While professional installation by a qualified electrician or generator technician is always recommended, understanding the installation process helps ensure proper system integration:

Pre-Installation Preparation: Before beginning installation, ensure all generator power is completely disconnected and locked out. Verify that you have the correct MX322 model for your alternator configuration. Examine the existing AVR mounting location and wiring harness to confirm compatibility. Review the STAMFORD technical manual specific to your alternator model for any unique wiring requirements.

Mounting Procedure: The MX322 typically mounts directly to the alternator housing or nearby generator frame using the provided mounting brackets. Ensure the mounting location provides adequate ventilation and protects the AVR from direct water spray, excessive vibration, and extreme heat sources. The conformal coating provides environmental protection, but proper mounting location extends service life significantly.

Electrical Connections: Connect the sensing inputs according to your alternator's configuration—the three-phase sensing capability requires proper connection to all three phase outputs. Attach the excitation power leads to the alternator's excitation winding, observing correct polarity. Connect any auxiliary inputs such as remote voltage adjustment, DWELL control, or external monitoring interfaces according to your system requirements. Verify all connections are tight and properly terminated before proceeding.

Initial Configuration: Set the voltage adjustment potentiometer to the middle position initially. Configure the over-voltage protection threshold according to your application requirements. If using the DWELL function with a turbocharged engine, configure the DWELL timing according to engine manufacturer specifications and generator load acceptance testing results.

Commissioning and Testing: With all connections verified, re-energize the generator and bring it to rated speed with no load connected. Measure output voltage and adjust the voltage trim potentiometer to achieve the desired no-load voltage (typically 240V for 220V systems or 480V for 440V systems). Apply incremental loads while monitoring voltage regulation, stability, and response time. Test protective functions including over-voltage shutdown and short circuit limiting under controlled conditions.

Why Purchase Your STAMFORD MX322 AVR from General Power

When you choose General Power as your source for the STAMFORD MX322 automatic voltage regulator, you're partnering with an authorized dealer committed to delivering genuine OEM components and exceptional customer service. Here's what sets General Power apart:

Genuine OEM STAMFORD Parts: Every MX322 AVR we sell is a factory-authentic STAMFORD product, not a counterfeit or inferior copy. We maintain direct relationships with STAMFORD and authorized distributors, ensuring complete traceability and authenticity. Our genuine parts come with manufacturer warranties and meet all original specifications.

Authorized Dealer Status: As an authorized dealer, General Power has access to technical support resources, training materials, and product updates directly from STAMFORD. This means we can provide expert guidance on application questions, compatibility concerns, and troubleshooting assistance that unauthorized sellers simply cannot match.

Same-Day Shipping Commitment: We understand that generator downtime costs money. That's why we maintain extensive inventory of high-demand items like the MX322 AVR and offer same-day shipping on orders placed before our cut-off time. Get your critical voltage regulator quickly and minimize expensive downtime.

Technical Expertise: Our team includes experienced generator technicians who understand AVR technology and can help you select the right components for your application. Whether you need installation guidance, troubleshooting help, or application engineering support, General Power provides the expertise you need.

Competitive Pricing: Genuine OEM quality doesn't have to mean premium pricing. General Power leverages our purchasing volume and efficient operations to offer competitive prices on authentic STAMFORD components including the MX322 voltage regulator.

Comprehensive Inventory: Beyond AVRs, General Power stocks a complete range of generator parts, alternator components, control systems, and accessories. Consolidate your purchasing and save on shipping by getting everything you need from one knowledgeable supplier.

Frequently Asked Questions About the STAMFORD MX322 AVR

Q1: What is the primary difference between the MX322 and other STAMFORD AVR models like the MX321 or SX460?

A: The MX322 represents one of STAMFORD's most advanced AVR designs, featuring three-phase sensing capability that monitors voltage across all three phases simultaneously—a feature not available in simpler models like the SX460. The MX322 also includes a dedicated DWELL function specifically engineered for turbocharged engine applications, integrated short circuit limiting, and adjustable over-voltage protection. While models like the SX460 serve well in basic applications, the MX322 delivers superior voltage regulation accuracy, faster response to load changes, and more comprehensive protection features required in demanding industrial applications. The MX321 is similar but the MX322 typically offers additional configuration options and enhanced sensing capabilities.

Q2: Can I replace a failed AVR from another manufacturer with the STAMFORD MX322?

A: In many cases, yes, but careful attention to specifications is required. The MX322 can often serve as an upgrade replacement for less sophisticated AVRs on competitive alternator brands, provided the excitation system voltage, current capacity, and sensing voltage ranges are compatible. You'll need to verify that your alternator's excitation winding impedance and current requirements fall within the MX322's output capacity. The sensing voltage must also match (typically 180-264V for three-phase sensing configurations). The physical mounting and connector configuration may require adaptation. General Power's technical team can review your specific alternator nameplate data and existing AVR model to confirm compatibility and provide guidance on any wiring modifications needed for successful installation.

Q3: What does the DWELL function do, and do I need it for my application?

A: The DWELL function is a specialized feature that manages voltage recovery timing following large load steps. When a significant load is suddenly applied to a generator powered by a turbocharged engine, the engine experiences a momentary speed droop until the turbocharger spools up and delivers additional power. Without DWELL, the AVR would immediately attempt to restore voltage by increasing excitation, which could overload the engine before the turbo responds, potentially causing a complete engine stall. The DWELL function introduces a controlled delay in voltage recovery, allowing the engine speed to stabilize first before the AVR aggressively corrects voltage. This feature is essential for generators coupled to turbocharged engines, particularly those with limited block load acceptance (typically less than 50% of rated capacity in a single step). If your generator uses a naturally aspirated engine or has excellent transient response characteristics, you may not need to activate the DWELL function, but having it available provides valuable flexibility.

Q4: How do I know if my MX322 AVR has failed and needs replacement?

A: Several symptoms indicate potential MX322 AVR failure. The most obvious is complete loss of voltage output from the alternator when the generator is running at rated speed—if the engine runs normally but produces no electrical output, the AVR is a prime suspect. Unstable voltage that fluctuates significantly under constant load conditions suggests AVR malfunction. Inability to adjust voltage using the trim potentiometer indicates internal failure of voltage control circuits. Overvoltage conditions that persist despite adjustment attempts may indicate failed over-voltage protection circuits. Visual inspection may reveal burnt components, damaged circuit traces, or signs of moisture intrusion. However, before replacing the AVR, verify that the alternator's rotating components (especially the rotating diodes and exciter windings) are functioning properly, as failures in these components can mimic AVR problems. Also check all wiring connections for looseness, corrosion, or damage. If you're uncertain about diagnosis, General Power's technical support can guide you through systematic troubleshooting procedures.

Q5: Is the MX322 suitable for marine generator applications?

A: Absolutely. The STAMFORD MX322 AVR is widely used in marine generator applications and includes several features that make it particularly well-suited for the challenging marine environment. The conformal coated circuit board provides excellent resistance to salt spray, humidity, and the corrosive conditions encountered in marine installations. The wide operating temperature range (-40°C to +70°C) accommodates both cold climate operation and the elevated temperatures common in engine rooms. The three-phase sensing capability is valuable in marine applications where balanced loads are critical for vessel electrical systems. The robust short circuit protection is especially important in marine installations where ground faults and short circuits pose particular hazards. Many marine generator manufacturers specify the MX322 as original equipment for their STAMFORD-powered generator sets. When installing in marine applications, ensure the AVR mounting location provides maximum protection from direct water spray and verify that all electrical connections use marine-grade terminals and proper sealing methods.

Invest in Reliable Power Generation with the STAMFORD MX322 AVR

The STAMFORD MX322 automatic voltage regulator represents a smart investment in power quality, system protection, and operational reliability. Whether you're maintaining a critical backup power system, managing prime power generation for an industrial facility, or servicing marine generator equipment, the MX322 delivers the advanced voltage regulation performance your application demands. Its three-phase sensing technology, comprehensive protection features, and specialized functions like DWELL control make it the intelligent choice for demanding applications where inferior AVRs simply cannot deliver acceptable performance.

Don't compromise on quality when it comes to voltage regulation—the AVR is the brain of your generator system, and cutting corners here risks damage to your valuable alternator investment and the sensitive loads it powers. Choose genuine OEM STAMFORD quality, choose authorized dealer support, and choose the company that understands your uptime is critical. Order your STAMFORD MX322 AVR from General Power today and experience the difference that genuine parts, expert support, and same-day shipping make. Our knowledgeable team is standing by to answer your questions, confirm compatibility, and get your replacement voltage regulator shipped immediately. Call us now or place your order online to get your generator back to peak performance with minimal downtime.
