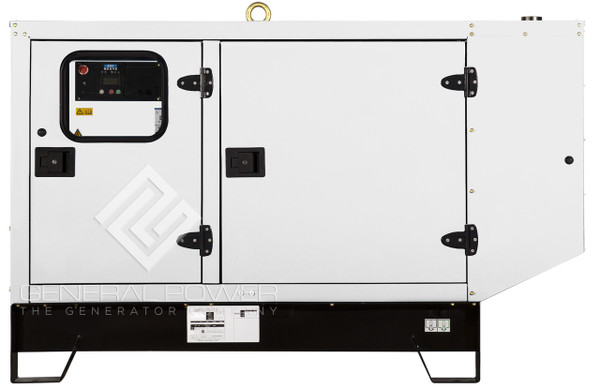

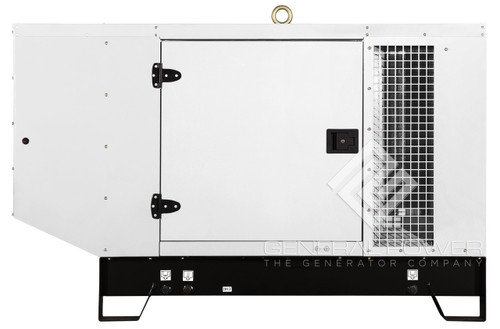

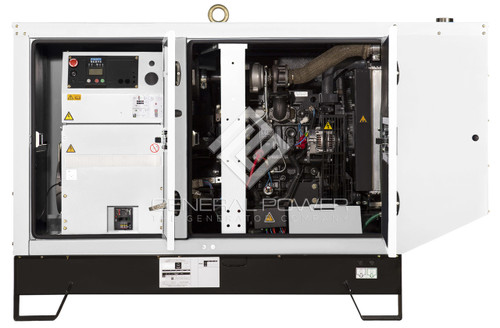

T40UC4iM-IV Enclosed - Mitsubishi | 40 kW 40 kVA

T40UC4iM-IV Enclosed - Mitsubishi | 40 kW 40 kVA

Worldwide Warranty
Quick Shipping
24/7 Support
SKU:
T40UC4iM-IV
Availability:
IN STOCK, Same day shipping Worldwide available
EPA Compliant:
Export Only
Condition:
Brand New, 2 Years International Warranty
Quality:
Load bank tested and ISO9001 certified
Type:
Fully Weather Proof Super Silent Enclosure, 63dBA
Reliability:
100% Made in USA and Europe (0% China)

OVERVIEW

40 KW MITSUBISHI Diesel Generator 40 KVA, Single phase, Enclosed type, EPA compliant, T40UC4iM-IV, Brand New, 2 Years Warranty



  • MITSUBISHI S4S-Y3DT61SD, Turbocharged Heavy duty diesel engine, 4 stroke, 4 Cylinders, 1800RPM, Liquid cooled, U.S. EPA / CARB Tier i4 compliant
  • LEROY SOMER LSA42.3L9, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
  • SCHNEIDER, Main line circuit breaker, 2/3pole, set mounted, wired and maximum output rated for complete generator protection
  • NEXYS, Digital auto-start/stop control panel. All genset parameter, alarms and control functions. CE listed
  • TELYS2, ADVANCED / 06x MULTILINGUAL, Digital auto-start/stop control panel with built-in Remote monitoring/control capability. All genset parameter, alarms and control functions. RS232 and RS485 (OPTIONAL)
  • DAY TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 100L (26 gal) (11 hours runtime autonomy @ 75% load)



BRAND NEW AND FULLY PACKAGED DIESEL GENERATOR SET INCLUDES STANDARD:

  • IP56 rated Weather proof / Super Silent enclosure. 12 gauge electro-zinc coated steel for maximum corrosion resistance
  • AUTO start/stop control feature included for remote start via 2-Wire dry contact
  • U.S. EPA / CARB TIER i4 compliant engine as per current U.S. Environmental Protection Agency regulations
  • 12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR, R220, +/- 0.5% regulation
  • Radiator rated for T°of 50°C [122°F] max with mechanical fan
  • Microprocessor based control panel
  • 12V charging alternator and 12V electrical starter motor
  • 12V charged DC starting battery with electrolyte and cables
  • 29dB(A) Critical class silencer installed inside the enclosure
  • Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
  • Mechanically welded chassis with anti-vibration isolators
  • Each unit prototype and individually factory load bank tested prior to shipping in ISO9001:2008 Quality Controlled facilities
  • User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
  • The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
  • Many options available: Aluminum enclosures, UL142 listed fuel tanks, UL1008 automatic transfer switches, Remote annunciators and More
  • Compliant with ISO3046, ISO8528, BS4999, BS5514, BS5000PT99, AS1359, IEC34, UTE5100, VDE0530 and ISO9001:2008



IP56 RATED FULLY WEATHER PROOF / SUPER SILENT ENCLOSURE FEATURES:

  • 12 gauge electro-zinc coated steel for maximum corrosion resistance (Phosphatizing degreasing, Non-chromic passivation, Osmosis purified rinsing and High durability polyester resin thermosetting powder paint)
  • 29dB(A) Internal-mounted critical silencer and flexible exhaust connector offering maximum component life and operator safety
  • Fade-, scratch-, and corrosion-resistant. Automotive-grade textured finish resulting in advanced corrosion and abrasion protection as well as enhanced edge coverage and color retention
  • Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film that meets UL 94 HF1 / FMVSS 302 flammability classification and repels moisture absorption
  • Interchangeable modular panel construction. Allows complete serviceability or replacement without compromising enclosure design
  • Service access. Multi-personnel doors for easy access to generator set control and servicing of the fuel fill, fuel gauge, oil fill, and battery
  • Cooling air discharge. Weather protective design featuring a vertical air discharge outlet grille. Redirects cooling air up and above enclosure to reduce ambient noise
  • Cooling/combustion air intake with a horizontal air inlet. Sized for maximum cooling airflow
  • Heavy duty Polyamide plastic hinges, Dichromate galvanized bolting and Stainless steel rivets for lifetime longevity
  • 100% modular design, complete enclosure can be removed or installed in under 30 minutes, no disassembly required
  • Meets and exceeds NFX41002 Salt spray test, NFT30049 UV Performance test, NFT30038 Paint adhesion test and 2000/14EC Low sound directives



GENERATOR POWER RATINGS, DIMENSIONS AND WEIGHT:

  • STANDARD POWER RATINGS: 40KW (40KVA) STANDBY, 36KW (36KVA) PRIME, 60HZ, 1800RPM, 1PHASE, 1.0PF
  • STANDARD VOLTAGES AVAILABLE: 240/120V
  • DIMENSIONS ENCLOSED SUPER SILENT TYPE: 2080mm [82in] x 960mm [38in] x 1415mm [56in], 885kg [1953lbs] Net
