Overview

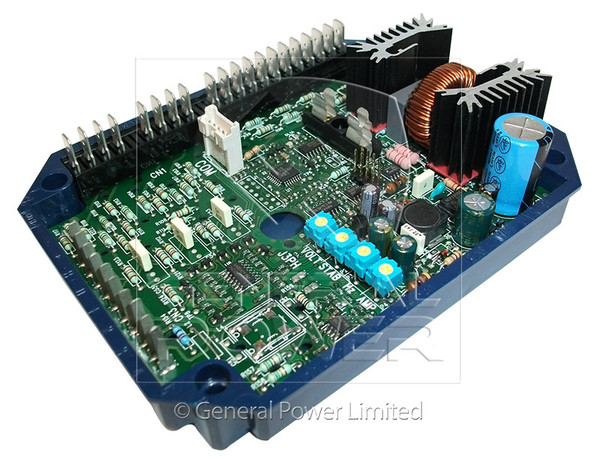

The MECC ALTE DER1 Automatic Voltage Regulator (AVR) represents a significant advancement in generator voltage control technology, combining the proven reliability of traditional AVR design with cutting-edge digital sensing capabilities. Engineered specifically for premium MECC ALTE alternator applications, the DER1 delivers exceptional voltage stability with an industry-leading regulation accuracy of ±0.5%. This precision ensures that your generator provides clean, consistent power to sensitive electronic equipment, reducing the risk of damage from voltage fluctuations and maintaining optimal performance across varying load conditions. The DER1 incorporates advanced digital 3-phase sensing technology that continuously monitors all three phases of generator output, automatically adjusting excitation to maintain precise voltage levels regardless of load changes, power factor variations, or environmental conditions.

Designed primarily for use with MECC ALTE's ECO40, ECO43, and ECO46 alternator frames, the DER1 AVR shares core architectural elements with the popular DSR model while incorporating enhanced features that make it the preferred choice for demanding commercial, industrial, and prime power applications. The digital sensing capability provides faster response times to load changes compared to analog alternatives, while the improved regulation tolerance ensures voltage remains within tighter specifications than standard AVRs. When paired with the optional DI1 digital interface module, the DER1 enables advanced monitoring and control functions, allowing operators to remotely adjust voltage settings, monitor operating parameters, and integrate the generator into building management systems. Whether you're replacing a failed AVR or upgrading your existing generator for improved performance, the MECC ALTE DER1 delivers the precision voltage control that modern electrical systems demand.

Key Specifications

Compatible Alternator Models

The MECC ALTE DER1 AVR is specifically engineered for use with MECC ALTE's ECO series alternators, providing optimal voltage regulation for these high-performance generator systems. The DER1 is the factory-specified automatic voltage regulator for ECO40 series alternators (including ECO40-1S, ECO40-2S, ECO40-3S models), ECO43 series alternators (ECO43-1S, ECO43-2S, ECO43-3S variants), and ECO46 series alternators (ECO46-1.5S, ECO46-2S, ECO46-3S configurations). These alternator frames are widely used in industrial generators ranging from 150 kVA to 500 kVA, making the DER1 a critical component in thousands of backup power and prime power installations worldwide. The digital 3-phase sensing technology in the DER1 makes it particularly well-suited for applications requiring tight voltage control, including data centers, hospitals, manufacturing facilities, and telecommunications installations where sensitive electronic equipment demands stable, clean power.

When verifying compatibility, always check your alternator's nameplate data to confirm the AVR model specification. The DER1 is designed to replace failed or aging DER1 units and is not typically interchangeable with other MECC ALTE AVR models without consulting factory documentation. If you're upgrading from an older AVR model or need assistance determining the correct replacement part for your specific alternator configuration, our technical support team can cross-reference your generator's serial number and alternator model to ensure you receive the exact AVR your system requires. The DER1 works seamlessly with both brushless and compound excitation systems used in MECC ALTE ECO series alternators and can be integrated with optional accessories like the DI1 digital interface for enhanced monitoring and control capabilities.

Why Buy from General Power

When you purchase your MECC ALTE DER1 AVR from General Power, you're getting more than just a replacement part—you're partnering with an authorized MECC ALTE dealer committed to providing genuine OEM components, expert technical support, and exceptional customer service. Every DER1 automatic voltage regulator we sell is 100% authentic MECC ALTE factory product, not aftermarket imitations or refurbished units. This means you receive the same quality, reliability, and warranty protection as units installed in new generators. Our extensive inventory of generator parts allows us to offer same-day shipping on orders placed before our cutoff time, minimizing downtime and getting your generator back online quickly. Whether you're managing a critical facility that cannot afford extended outages or coordinating repairs for a fleet of rental generators, our fast fulfillment ensures you receive the parts you need when you need them.

Our bilingual technical support team understands generator systems inside and out and is available to answer questions about compatibility, installation procedures, troubleshooting failed AVRs, and optimizing generator performance. Call us toll-free at 1-888-769-3758 to speak with a knowledgeable specialist who can help you identify the correct parts, provide installation guidance, or troubleshoot voltage regulation issues. We serve customers across North America with the same commitment to quality and service that has made General Power a trusted name in the power generation industry. When you order from General Power, you benefit from our decades of experience, manufacturer-authorized technical training, and dedication to keeping your generators running reliably. Don't risk purchasing counterfeit parts from unauthorized sellers—order your genuine MECC ALTE DER1 AVR from General Power today and experience the difference that expert service and authentic OEM quality make.

Installation Overview

Installing or replacing a MECC ALTE DER1 AVR requires following proper safety procedures and understanding the electrical connections involved in voltage regulation systems. Always begin by completely shutting down the generator and disconnecting all power sources, including the battery if equipped with electric start. Allow the alternator to cool completely before accessing internal components. The installation process typically follows these essential steps:

• Step 1: Remove the Failed AVR – Locate the existing DER1 AVR, which is typically mounted inside the alternator terminal box. Carefully photograph or diagram all wire connections before disconnecting anything, paying particular attention to which terminals connect to sensing inputs, excitation outputs, and any auxiliary functions. Remove the mounting screws securing the AVR to the alternator frame and carefully disconnect all wiring harnesses. Inspect the mounting area for any signs of heat damage, corrosion, or debris that should be cleaned before installing the new unit.
• Step 2: Prepare and Mount the New AVR – Remove the new MECC ALTE DER1 from its protective packaging, being careful to handle it by the edges to avoid static discharge damage to sensitive electronic components. Verify that the mounting holes align with your alternator's AVR mounting points. Secure the new DER1 to the mounting surface using the appropriate fasteners, ensuring a solid mechanical connection and proper grounding contact with the alternator frame.
• Step 3: Connect Wiring Harnesses – Using your photographs or diagrams as reference, carefully reconnect all wiring to the new DER1 AVR. Typical connections include the 3-phase sensing inputs (which monitor generator output voltage), the excitation output (which supplies DC current to the alternator rotor), and any auxiliary connections for voltage adjustment potentiometers or remote control interfaces. Ensure all connections are tight and properly seated, as loose connections can cause erratic voltage regulation or AVR failure. Double-check that no wires are pinched, damaged, or contacting moving parts.
• Step 4: Test and Calibrate – Before reassembling covers and enclosures, perform initial testing by starting the generator under no-load conditions. Monitor the output voltage using a reliable multimeter, verifying that voltage builds up properly and stabilizes at the correct setpoint (typically 220-240V depending on your system configuration). Gradually apply load to the generator while monitoring voltage stability. If voltage adjustment is required, use the voltage trimmer potentiometer according to MECC ALTE specifications. Once voltage is properly set and stable across varying loads, shut down the generator and reinstall all protective covers and terminal box closures.

Important Safety Note: AVR installation involves working with electrical components and should only be performed by qualified technicians familiar with generator systems and electrical safety procedures. If you are not comfortable performing this installation, contact a certified generator service technician. Improper installation can result in equipment damage, poor voltage regulation, or safety hazards. Always consult the official MECC ALTE technical documentation for your specific alternator model before beginning any service work.

Frequently Asked Questions

Q: What does the MECC ALTE DER1 AVR do?
A: The DER1 Automatic Voltage Regulator controls the electrical output of your MECC ALTE alternator by continuously monitoring the generator's output voltage and automatically adjusting the excitation current supplied to the alternator's rotor windings. This closed-loop control system maintains stable voltage output (within ±0.5%) regardless of load changes, ensuring your generator provides consistent, reliable power to connected equipment. The digital 3-phase sensing technology monitors all three phases simultaneously, allowing the DER1 to respond quickly to changing conditions and maintain superior voltage stability compared to single-phase sensing AVRs.

Q: How do I know if my DER1 AVR is failing?
A: Common symptoms of AVR failure include unstable voltage output (voltage that fluctuates significantly with load changes), consistently high or low voltage that cannot be corrected by adjustment, failure to build up voltage when the generator starts, or complete loss of generator output. You may also notice unusual behavior such as voltage that continues to rise uncontrollably (indicating loss of regulation), or a generator that produces power intermittently. If you observe any of these symptoms, the AVR should be tested and likely replaced. Keep in mind that similar symptoms can also be caused by other alternator components, so proper diagnostic procedures should be followed to confirm AVR failure before replacement.

Q: Is this an OEM MECC ALTE part or an aftermarket replacement?
A: General Power supplies only 100% genuine, factory-original OEM MECC ALTE DER1 AVRs. This is the exact same automatic voltage regulator that MECC ALTE installs in new alternators at their manufacturing facilities. We do not sell aftermarket, imitation, or refurbished AVRs. When you order a DER1 from General Power, you receive an authentic MECC ALTE product with full factory warranty protection and the quality assurance that comes with genuine OEM components. This ensures proper fit, correct electrical specifications, and reliable long-term performance.

Q: What warranty coverage comes with the DER1 AVR?
A: The MECC ALTE DER1 AVR is covered by the manufacturer's standard warranty against defects in materials and workmanship when installed and operated according to factory specifications. Warranty coverage typically extends for 12-24 months from the date of purchase, depending on the specific warranty terms in effect at the time of sale. The warranty covers replacement or repair of defective units but does not cover damage caused by improper installation, operation outside specified parameters, electrical surges, environmental contamination, or physical damage. For specific warranty terms applicable to your purchase, please contact General Power at 1-888-769-3758, and our customer service team will provide detailed warranty information.

Q: Can I get technical support for installing or troubleshooting my DER1 AVR?
A: Absolutely! General Power provides comprehensive technical support to help you with compatibility verification, installation guidance, and troubleshooting assistance. Our bilingual technical support team has extensive experience with MECC ALTE products and generator systems. Call us toll-free at 1-888-769-3758 to speak with a knowledgeable specialist who can answer questions about wiring connections, voltage adjustment procedures, diagnostic testing, and integration with optional accessories like the DI1 digital interface. We're committed to ensuring your generator operates reliably, and our technical support is available to assist you throughout the installation and operation of your DER1 AVR.
