262KW 328KVA Perkins Powered Diesel Generator Set

This brand new 262kW diesel generator set is powered by a heavy duty Perkins industrial engine and paired with a premium Stamford alternator, delivering dependable standby and prime power for demanding applications. Every unit is designed, engineered, assembled, and tested in ISO9001 and CE certified facilities to ensure consistent quality.

• Standby rating: 262 kW / 328 kVA
• Prime rating: 234 kW / 293 kVA
• Configuration: 3 phase, 0.8 power factor, 60 Hz, 1800 RPM
• Engine: Perkins 1706D-E93TAG1, turbocharged with electronic isochronous governor
• Alternator: Stamford S4L1D-C41, 12 leads, brushless
• Controller: Deep Sea Electronics DSE7320 with dual core processor, UL listed
• Automatic Shutdown Protections: Voltage, frequency, overload, and low oil pressure
• Steel skid: 7 gauge heavy duty mechanically welded construction
• Main line breaker: 3 pole, set mounted and wired for full protection
• Warranty: up to 2 years or 2000 hours comprehensive international coverage

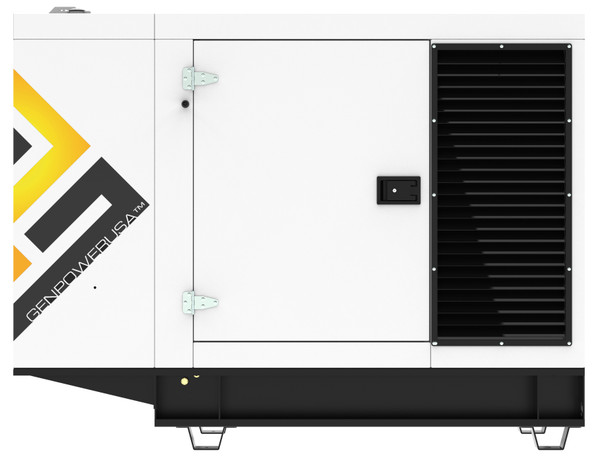

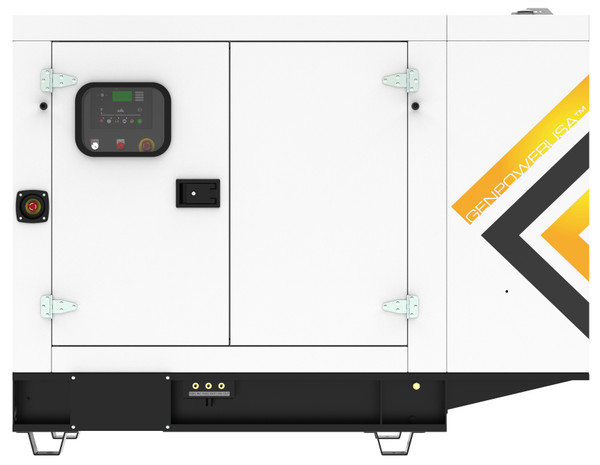

• Version: Enclosed (Fully Weather Proof Silent Enclosure)
• EPA Compliant: EPA Tier 3 Stationary Emergency

This generator set is fully packaged and ready to deploy for most standby and prime power applications right out of the box. Backed by rigorous factory testing and compliance with international standards, it offers facilities a reliable power solution with minimal setup complexity.

Perkins Engine Built for Durability and Reliability

The Perkins 1706D-E93TAG1 engine anchors this generator set with a reputation for heavy duty industrial performance and worldwide parts and service support. Running at 1800 RPM with a turbocharged design, the engine uses an electronic isochronous governor to maintain precise speed control under varying load conditions.

The industrial grade cooling system includes fan guards and a coolant drain extension with an in-line valve, simplifying maintenance while protecting the engine from overheating. This combination of proven engineering and accessible service infrastructure makes the Perkins engine a dependable core for facilities that cannot tolerate unplanned downtime.

Stamford Alternator Delivers Clean, Stable Power

The Stamford S4L1D-C41 alternator is a brushless, 12 lead design rated for full load with thermo-magnetic switch protection built in. Its skewed rotor and 2/3 pitch winding work together to suppress triple harmonics, resulting in a superior voltage waveform for sensitive connected equipment.

Class H insulation and a self ventilated drip proof design give the alternator resilience against heat and environmental exposure, while electronic automatic voltage regulation keeps output steady across changing load demands. This alternator is engineered to perform reliably in both standby emergency scenarios and continuous prime power operation.

Advanced Digital Control for Total System Oversight

At the center of this generator set is the Deep Sea Electronics DSE7320 controller, a microprocessor based system with a dual core main processor and extended memory. Its large, 4 line backlit LCD display supports up to 7 languages and provides clear visibility into system status across manual, test, and auto operation modes, including 2 wire remote start and stop capability.

The controller logs up to 250 events and supports more than 50 fully configurable alarms, covering automatic shutdowns for conditions like under and over voltage, overload, overcurrent, and low oil pressure. This level of monitoring gives operators the information they need to catch issues before they become failures.

Fully Packaged Configuration Ready for Deployment

This generator set arrives fully packaged on a 7 gauge heavy duty mechanically welded steel skid, with a master cabinet that mechanically compartmentalizes all control, power, and breaker components for organized vertical conduit access.

A set mounted, wired 3 pole main line breaker provides complete output protection, while heavy duty anti-vibration mounts isolate the engine, radiator, and generator from the frame to reduce noise and vibration. The package also includes an electrolyte charged battery with rack and cables, along with an oil drain extension for straightforward maintenance access.

Engineered to International Standards for Peace of Mind

Each unit undergoes individual factory load bank testing prior to shipping, backed by prototype testing in ISO9001 quality certified facilities. The generator accepts 100 percent rated load in a single step in accordance with NFPA110 and meets ISO8528-5 class G-2 for transient response.

Design compliance extends across ISO9001, ISO 8528, 3046, and 7637, along with EN and NEMA standards, and the unit is NFPA 37 compliant with NFPA Type 10 Level 1 capability available when equipped with the necessary accessories. Combined with up to 2 years or 2000 hours of comprehensive international warranty coverage, this generator set offers lasting confidence for critical power applications.
