30 KW Commercial Generator powered by a premium Perkins generator engine for EPA Stationary Emergency application

PERKINS POWERED 30 KW DIESEL GENERATOR, BRAND NEW

MODEL:

GENPOWERUSA GP-P30-60T4i

QUALITY:

100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN USA

DIESEL GENERATOR POWER RATINGS:

30 KW (30 KVA) STANDBY, 28 KW (28 KVA) PRIME, 1PHASE, 1.0PF, 60 HZ, 240/120V

EMISSIONS COMPLIANCE:

-U.S. EPA INTERIM 4 compliant engine for Stationary Emergency application as per current U.S. Environmental Protection Agency regulations

POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:

-PERKINS 404D-22TAG, 1800RPM
-Mechanical governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve

PREMIUM INDUSTRIAL-GRADE ALTERNATOR:

-LEROY SOMER TAL-042-D-M1, 4 Leads, brushless, 100% Manufactured in Europe
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation

ADVANCED DIGITAL CONTROLLER:

-DEEP SEA ELECTRONICS DSE7320 MKII, Microprocessor based generator controller with dual-core main processor and extended memory. UL listed
-User-friendly, large, 4-line backlit LCD text display with support for up to 7 display languages
-Manual, Test and Auto Operation Mode with 2-wire remote start/stop capability
-250 event history log and 50+ fully configurable alarms
-Automatic shutdowns: Under/Over voltage; Over load; Over current; Under/Over frequency; Under/Over speed; High coolant temperature; Low oil pressure; Low coolant level

VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:

-7ga, heavy duty steel skid with sloped-surface basin design for 110% containment of engine fluids
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access. Single-side, right-facing
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Battery disconnect switch
-Oil drain extension with in-line valve

ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:

-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping with pride and care in our factory in USA
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)

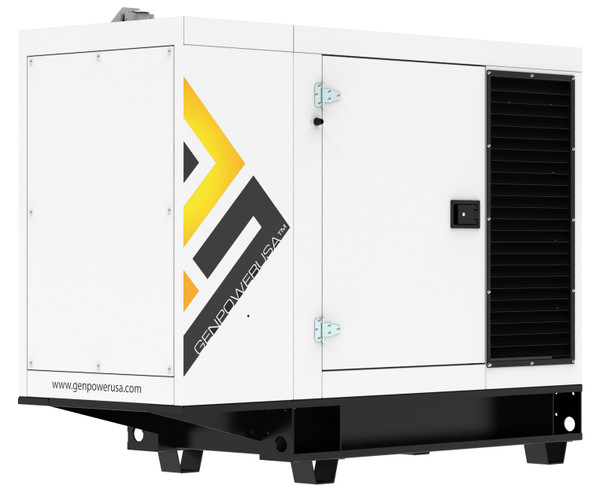

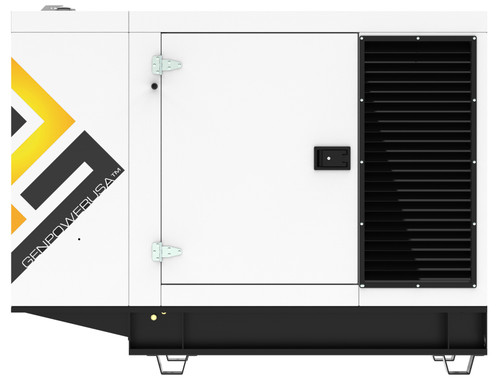

ENCLOSURE:

SUPER-SILENT, CORROSION-PROOF, MARINE GRADE ALUMINUM ENCLOSURE FOR LIFETIME LONGEVITY AND MAXIMUM SOUND ATTENUATION:

-35DBA CRITICAL SILENCER: MIRATECH COWL TXS spiral silencer in aluminized steel construction for up to 35dBA sound reduction
-CONSTRUCTION: AL5052, 12GA, Marine-Grade ALUMINUM alloy panels with stainless steel hardware for lifetime corrosion resistance
-TYPE: IP56 / outdoor rated / Weather proof / super silent design compliant to ISO12944 1000+ hour salt-spray test
-FINISH: UV and fade-resistant, high temperature cured, RAL9003-white polyester powder paint
-VERTICAL DISCHARGE PLENUM: Weather-resistant vertical air discharge outlet redirects cooling air up and above enclosure to reduce ambient noise
-SOUND ATTENUATING MATERIAL: Up to 51mm (2in) Acoustic insulation with hydrocarbon sealing film for maximum sound absorption, flame resistance and moisture repellence
-110% ACCESS: XXL maintenance-friendly access featuring a beam-less design for industry-leading access to the engine and radiator from both sides

Perkins-Powered 30 kW Diesel Generator – GENPOWERUSA GP-P30-60T4i

Designed for long-term reliability and built to meet EPA Tier 4i standards, the GENPOWERUSA GP-P30-60T4i is a robust 30 kW commercial diesel generator ideal for stationary emergency power applications. This unit delivers consistent performance backed by premium-grade components and U.S.-based engineering.

This generator is fully packaged and pre-configured for fast deployment. It ships standard with a heavy-duty steel skid, vibration isolators, battery kit, and master control cabinet.

Built to Withstand Demanding Commercial Use

The GP-P30-60T4i is designed to handle harsh conditions and extended runtime. Its Perkins engine features a turbocharged, aftercooled design with low fuel consumption, just 2.4 gallons per hour at full load. A rugged Leroy Somer alternator provides voltage stability even under fluctuating loads, with a skewed rotor and Class H insulation for superior electrical performance.

Engineered for Smarter Control and Monitoring

Equipped with the Deep Sea DSE7320 MKII, this generator offers intelligent control and diagnostics. The controller features a 4-line LCD screen, multi-language support, and remote start/stop capability. Optional upgrades include cloud-based monitoring via DSEWebNet and a suite of load-sharing and expansion modules

Silent and Weatherproof Enclosure Options

Available with a super-silent, marine-grade aluminum enclosure, the GP-P30-60T4i ensures long-lasting corrosion resistance and reduced ambient noise. Sound-absorbing insulation, vertical air discharge, and a 35dBA-rated Miratech silencer make it suitable for both residential proximity and commercial facilities
