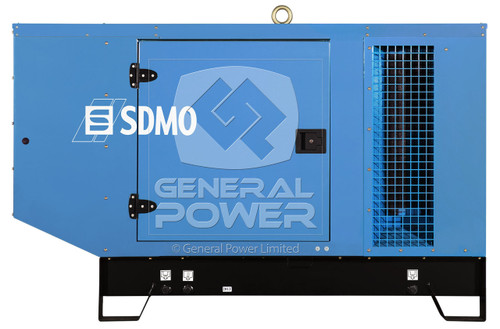

SDMO K12U Generator

The SDMO K12U is a highly capable power solution equipped with a reliable Kohler diesel engine. This generator is perfectly designed for supplying emergency power in variable load applications in accordance with ISO 8528-1.

• Engine: 4-cylinder Kohler Diesel KDW1404 engine.
• Standby Power Output: 14.5 kVA / 11.6 kWe at 480/277V.
• Alternator: AT00350T alternator with a G2 performance class.
• Frequency & Voltage: 60 Hz operation at 480/277V.
• Control Panel: APM303 standard control panel, with the advanced TELYS panel available as an option.
• Compact Dimensions & Weight: 1410 mm Length x 720 mm Width x 1020 mm Height, with a dry weight of 340 kg.
• EPA Compliance: Export Only
• Version: Enclosed (Fully Weather Proof Silent Enclosure)

The generator features a mechanically welded chassis with an antivibration suspension for enhanced stability. Additionally, it includes a main line circuit breaker to ensure proper safety during operation.

Advanced Control Panels for the SDMO K12U

The standard APM303 control panel is a versatile unit that can be operated in manual or automatic mode. Equipped with an LCD screen, the user-friendly APM303 offers high-quality basic functions to guarantee simple, reliable operation and supervision of your generating set. It displays critical measurements such as phase-to-neutral voltages, active power currents, and fuel levels. For more advanced needs, the ergonomic TELYS control panel is also available as an option.

SDMO K12U Engine and Alternator Details

The internal Kohler diesel engine runs at a speed of 1800 RPM and is controlled by a mechanical governor. The engine has a displacement of 1.37 and utilizes a glycol-ethylene coolant. Furthermore, the direct-coupled three-phase alternator features an IP 23 protection indication.

Dimensions and Soundproof Options

For environments requiring noise control, a soundproofed version is offered with the M126 commercial enclosure. This soundproofed model maintains an acoustic pressure level of 74 dB(A) at 1 m and has a dry weight of 510 kg. You can also opt for a base and canopy specification, which has a dry weight of 660 kg and an increased tank capacity of 93 liters.
