Overview

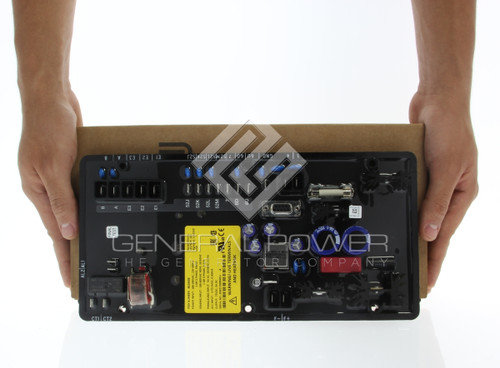

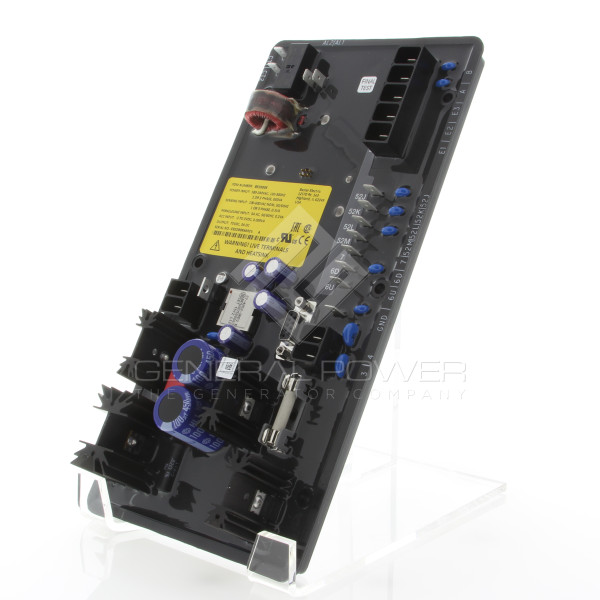

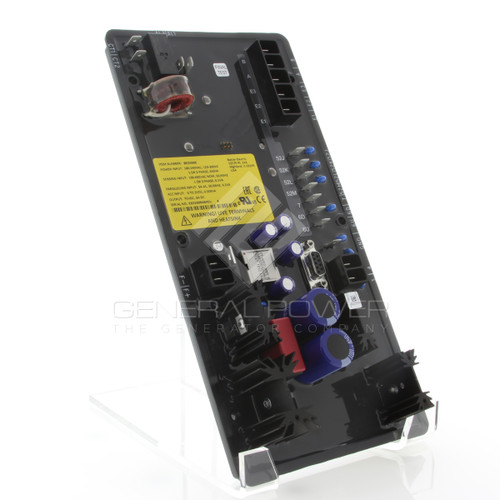

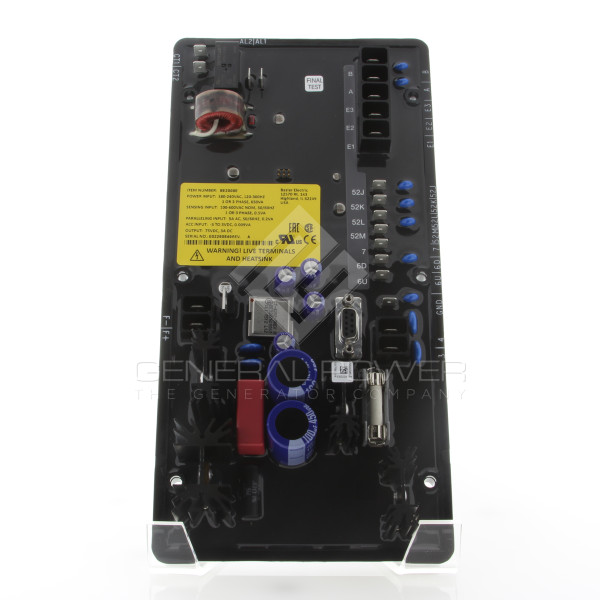

The BASLER BE2000E is a multi-functional, highly advanced digital automatic voltage regulator (AVR) designed to deliver superior generator voltage control and regulation performance. Engineered by Basler Electric, a global leader in power control and protection systems, the BE2000E represents the cutting edge in AVR technology for industrial, commercial, and prime power applications. This sophisticated digital regulator maintains precise voltage output from your generator, ensuring stable, reliable electrical power even under varying load conditions. The BE2000E was specifically developed to fully replace the original MARATHON ELECTRIC DVR2000E and DVR2000EC voltage regulators, offering enhanced functionality, improved reliability, and advanced diagnostic capabilities that surpass legacy analog systems. Whether you're maintaining critical standby power systems, supporting continuous industrial operations, or managing rental fleet equipment, the BE2000E delivers the performance and durability your generator requires.

As an automatic voltage regulator, the BE2000E continuously monitors generator output voltage and automatically adjusts excitation current to the alternator field windings, compensating for load changes, power factor variations, and engine speed fluctuations. This intelligent regulation ensures your generator produces clean, stable voltage within tight tolerances, protecting sensitive electronic equipment and preventing damage from over-voltage or under-voltage conditions. The digital architecture of the BE2000E provides superior stability compared to older analog regulators, with faster response times, reduced harmonic distortion, and enhanced protection features including over-excitation limiting, under-frequency roll-off, and comprehensive fault diagnostics. Basler Electric's proven reliability and engineering excellence make the BE2000E the preferred choice for OEM generator manufacturers, service technicians, and end-users who demand maximum uptime and performance from their generating equipment. With its direct drop-in compatibility for Marathon DVR2000E series regulators, the BE2000E offers a seamless upgrade path that delivers immediate performance improvements without requiring alternator modifications or rewiring.

Key Specifications

Compatible Alternator Models

The Basler BE2000E AVR is engineered for broad compatibility with brushless alternators used in generator sets ranging from 10kW to 150kW output capacity. This voltage regulator is the direct OEM replacement for Marathon DVR2000E and DVR2000EC models, making it compatible with Marathon alternator series including the MP, MPC, 481, 482, and 484 generator ends. Beyond Marathon applications, the BE2000E works seamlessly with Basler-compatible alternators from leading manufacturers including Stamford, Leroy Somer, Mecc Alte, Newage, and many other industrial generator brands. The regulator is commonly found controlling voltage in generator sets powered by Caterpillar, Cummins, John Deere, Perkins, Detroit Diesel, Volvo Penta, and other diesel and natural gas engines across industrial, commercial, and marine applications. The BE2000E's versatile single-phase sensing and auto-frequency detection (50/60 Hz) make it suitable for both domestic and international generator applications. When replacing an existing AVR, always verify compatibility by checking your alternator nameplate data or consulting your generator's technical manual. The BE2000E's direct drop-in design ensures that technicians familiar with Marathon DVR2000E installations will find the replacement process straightforward, with identical mounting dimensions and wiring connections that minimize downtime during service or emergency repairs.

Why Buy from General Power

When you purchase your Basler BE2000E AVR from General Power, you're buying from an authorized distributor committed to providing genuine OEM generator parts, expert technical support, and exceptional customer service. We maintain extensive inventory of Basler Electric voltage regulators and generator components, enabling same-day shipping on orders placed before our daily cutoff time—critical when you need to restore generator operation quickly. Every BE2000E we sell is a 100% genuine Basler Electric product, not a counterfeit or aftermarket substitute, ensuring you receive the full manufacturer warranty and the quality assurance that comes with authentic OEM parts. Our knowledgeable technical support team provides bilingual assistance in English and Spanish, ready to help you verify compatibility, answer installation questions, and troubleshoot voltage regulation issues. Whether you're a professional generator technician, facility maintenance manager, or equipment owner, we're here to support your power generation needs with the expertise that comes from years of specialization in the generator parts industry. Contact our team today at 1-888-769-3758 to speak with a generator parts specialist who can confirm the correct AVR for your application, provide technical specifications, or process your order immediately. At General Power, we understand that generator downtime means lost productivity, compromised safety, and revenue loss—that's why we're committed to getting the right parts to you fast, backed by the technical knowledge you need for successful repairs and maintenance.

Installation Overview

Installing the Basler BE2000E automatic voltage regulator requires basic electrical knowledge and adherence to safety procedures. Before beginning any AVR replacement, always ensure the generator is completely shut down, disconnected from all loads, and that the battery charger is disconnected to prevent unexpected startup. Allow adequate cooling time if the generator has been recently operated, as components may remain hot.

• Step 1 - Remove the Failed AVR: Locate the existing voltage regulator, typically mounted inside the generator control panel or on the alternator housing. Carefully label or photograph all wire connections before disconnecting them from the old AVR terminals. Remove the mounting hardware securing the AVR to its mounting surface and extract the failed unit. Inspect all wire terminals and connections for signs of heat damage, corrosion, or loose connections that may have contributed to the failure.
• Step 2 - Prepare and Mount the BE2000E: Verify that the mounting surface is clean and provides adequate ventilation around the AVR for heat dissipation. The BE2000E features an integrated heat sink that must have unrestricted airflow. Position the new Basler BE2000E AVR in the mounting location and secure it using appropriate hardware. Ensure the regulator is firmly mounted to prevent vibration damage during generator operation.
• Step 3 - Connect Wiring: Following your wiring diagram, alternator schematic, or the labels you created during removal, reconnect all wiring to the appropriate terminals on the BE2000E. Common connections include sensing inputs (voltage sensing from the generator output), excitation field outputs (to the alternator rotor field windings), and power supply connections. Ensure all connections are tight and secure, with no stray wire strands that could cause short circuits. Double-check each connection against your documentation before proceeding.

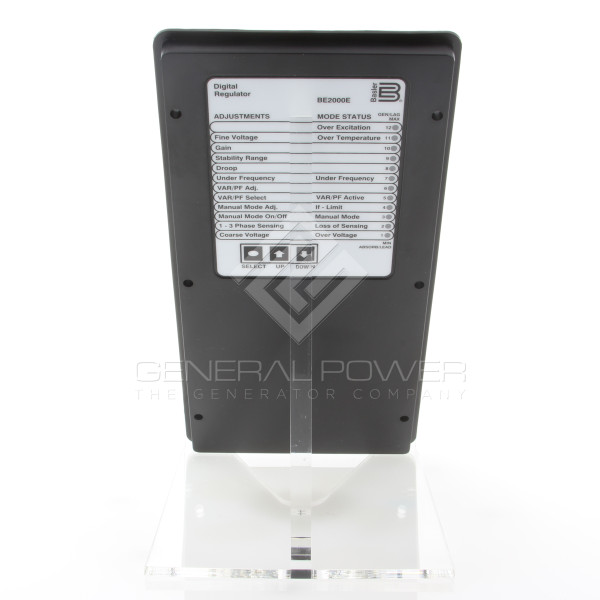

• Step 4 - Test and Adjust: With all connections verified, restore power to the generator system and start the engine. Monitor the output voltage as the generator builds excitation. The BE2000E should bring the generator to rated voltage within seconds. Check voltage regulation accuracy across different load conditions if possible. If voltage adjustment is necessary, the BE2000E features accessible potentiometers for fine-tuning voltage setpoint and stability parameters. Always consult the Basler BE2000E technical manual for specific adjustment procedures and recommended settings for your alternator type.

For complex installations or if you're unfamiliar with generator electrical systems, we strongly recommend consulting a qualified generator technician or electrician. Improper AVR installation can result in equipment damage, personal injury, or generator malfunction.

Frequently Asked Questions

Q: What does the Basler BE2000E automatic voltage regulator do?
A: The BE2000E is the control brain for your generator's voltage output. It continuously monitors the electrical voltage produced by your generator and automatically adjusts the excitation current sent to the alternator's field windings to maintain consistent, stable voltage output regardless of load changes, engine speed variations, or power factor fluctuations. Without a properly functioning AVR, your generator would produce unstable voltage that could damage connected equipment or fail to power loads effectively.

Q: How do I know if my AVR is failing and needs replacement?
A: Common symptoms of AVR failure include: generator voltage that is too high or too low and won't adjust, voltage that fluctuates wildly under load, generator that fails to build voltage when started, intermittent voltage regulation, or physical damage to the AVR such as burnt components, melted connectors, or damaged circuit boards. If you're experiencing any of these issues and have ruled out other causes like faulty wiring or alternator problems, the AVR is likely the culprit and should be replaced with a genuine Basler BE2000E.

Q: Is this a genuine OEM Basler Electric product or an aftermarket copy?
A: General Power sells only 100% genuine, authentic OEM Basler Electric BE2000E voltage regulators. We are an authorized distributor of Basler Electric products, and every AVR we ship comes directly from Basler Electric with full manufacturer warranty and quality assurance. We never sell counterfeit, remanufactured, or aftermarket substitute parts labeled as OEM. When you order from General Power, you receive the real Basler BE2000E with all the engineering quality, reliability, and performance that Basler Electric is known for worldwide.

Q: What warranty coverage comes with the Basler BE2000E AVR?
A: The Basler BE2000E comes with the manufacturer's standard warranty covering defects in materials and workmanship. Warranty terms typically provide coverage for a specified period from the date of purchase when the AVR is installed and operated according to Basler Electric's specifications. The warranty does not cover damage from improper installation, electrical surges, environmental contamination, or operation outside specified parameters. For specific warranty duration and terms, please contact our team at 1-888-769-3758, and we'll provide complete warranty information for your BE2000E purchase.

Q: Can I get technical support for installing or troubleshooting my BE2000E?
A: Absolutely! General Power provides expert technical support to help you with compatibility verification, installation guidance, and troubleshooting assistance. Our bilingual support team (English and Spanish) has extensive experience with Basler voltage regulators and can help answer your questions about wiring connections, voltage adjustment, and diagnosing regulation problems. Call us at 1-888-769-3758 to speak with a knowledgeable generator parts specialist. For detailed technical specifications, wiring diagrams, and adjustment procedures, we can also provide access to Basler Electric technical documentation and installation manuals specific to the BE2000E model.

Order Today

Don't let a failed voltage regulator keep your critical generator offline. Order your genuine Basler BE2000E automatic voltage regulator from General Power today and get your generator back to producing stable, reliable power. With our extensive inventory and same-day shipping capability, we'll get your BE2000E AVR dispatched quickly so you can minimize costly downtime. Whether you're replacing a failed Marathon DVR2000E, upgrading from an older analog regulator, or stocking critical spare parts for your facility, General Power is your trusted source for authentic OEM Basler Electric components. Our commitment to quality means you'll never receive counterfeit or substandard parts—only genuine Basler products backed by manufacturer warranty and our dedication to customer satisfaction. Need help confirming compatibility with your specific alternator model? Have questions about installation or technical specifications? Our expert team is just a phone call away at 1-888-769-3758, ready to provide the bilingual technical support and customer service that sets General Power apart. We understand that your generator represents a significant investment in power reliability, and we're here to help you protect that investment with quality parts, competitive pricing, fast shipping, and the expertise you need for successful generator maintenance and repair. Place your order now and experience the General Power difference—where generator parts expertise meets exceptional customer service.
