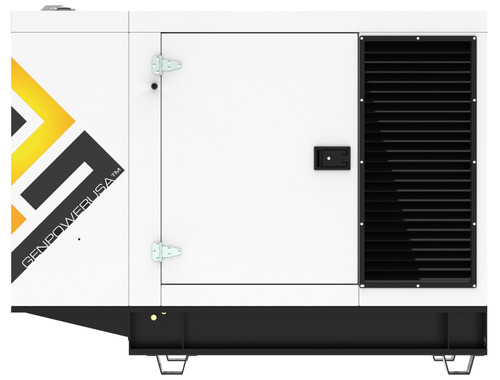

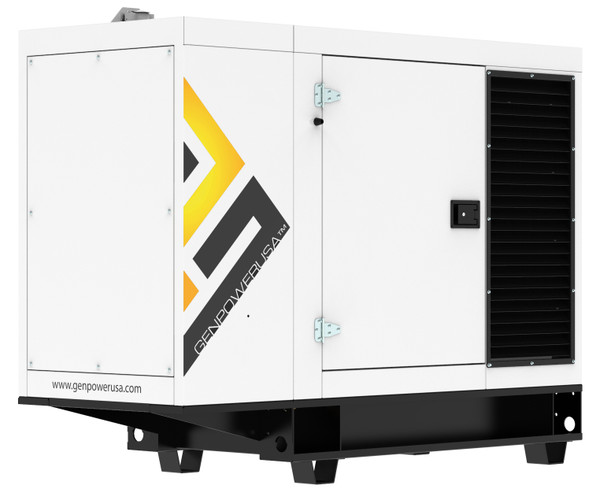

100 KW Generator 100 kVA, Perkins, EPA Tier 4 Final, 1-PHASE

100 KW Generator 100 kVA, Perkins, EPA Tier 4 Final, 1-PHASE

Worldwide Warranty
Quick Shipping
24/7 Support
SKU:
GPM-P110-60T4F-1PHASE
EPA Compliant:
EPA CARB Tier 4 Final
Power Ratings:
110KW 110KVA Standby / 100KW 100KVA Prime
Condition:
Brand New, 2 Years International Warranty
Quality:
100% Engineered and Assembled in USA
Reliability:
Individually certified and load bank tested in USA

OVERVIEW

110KW 138KVA PERKINS POWERED DIESEL GENERATOR SET, BRAND NEW

QUALITY:
100% DESIGNED, ENGINEERED, ASSEMBLED AND TESTED IN ISO9001 AND CE CERTIFIED FACILITIES

POWER RATINGS:
110KW 110 KVA STANDBY, 100KW 100 KVA PRIME, 1PHASE, 1.0PF, 60HZ

EMISSIONS COMPLIANCE:
U.S. EPA CARB TIER 4 FINAL compliant engine for Stationary Emergency, Stationary Prime, and Mobile Prime application as per current U.S. Environmental Protection Agency regulations

POWERED BY A HEAVY DUTY INDUSTRIAL ENGINE FOR MAXIMUM DURABILITY, EXCELLENT RELIABILITY AND WORLDWIDE SUPPORT:
-PERKINS 1204J-E44TTAG2, 1800RPM, Turbocharged, air-to-air cooled
-Electronic isochronous governor
-Industrial-grade cooling system with fan guards and coolant drain extension with in-line valve

PREMIUM INDUSTRIAL-GRADE ALTERNATOR:
-STAMFORD UCDI-274D, 12 Leads, brushless
-Full load rated with thermo-magnetic switch protection
-Skewed rotor and 2/3 pitch winding suppress triple harmonics and guarantee a superior voltage waveform
-Class H Insulation and Self-ventilated drip-proof design
-Electronic automatic voltage regulation

ADVANCED DIGITAL CONTROLLER:
- DEEP SEA ELECTRONIC DSE7320MKII, Microprocessor based generator controller, UL listed.
- User-friendly, 4-line back light LCD icon display, with on-screen line-diagram functionality.
- Manual and Auto Operation Mode, with 2-wire remote start/stop capability.
- 50 event log & 50+ Engine/ECU/Alternators alarms. Warning, Electrical Trip and Shutdown Alarms.

148Gal SINGLE-WALLED INTEGRAL METALLIC FUEL TANK FOR DAILY AUTONOMY:
- 26-hours runtime autonomy @ 75% PRP, 20-hours runtime autonomy @ 100% PRP
- Electronic fuel level sender and visual gauge
- Programmable low-level, high-level alarms and shutdowns

VERSATILE CONFIGURATION IS FULLY PACKAGED AND READY FOR MOST STANDBY AND PRIME POWER APPLICATIONS:
-7ga, heavy duty mechanically-welded steel skid
-Master cabinet with mechanically-compartmentalized housing for all control/power/breaker/connections components and vertical conduit access
-Main line breaker, 3 pole, set mounted, wired and maximum output rated for complete protection
-Heavy-duty AVM’s isolate engine/radiator/generator from frame to reduce vibration and noise
-Electrolyte-charged battery with rack, cables and rubber-booted connections
-Oil drain extension with in-line valve

ENGINEERED TO THE HIGHEST STANDARDS AND FOR MAXIMUM PEACE OF MIND:
-QUALITY: Each unit prototype and individually factory load bank tested prior to shipping in ISO9001 Quality facilities
-INTERNATIONAL WARRANTY: up to 2 years or 2000 hours comprehensive international warranty coverage, T&C’s apply
-PERFORMANCE: The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-2 for transient response
-DESIGNED TO INTERNATIONAL STANDARDS: ISO9001; ISO 8528, 3046, 7637; EN 61000-6-3, 61000-6-2, 55011; NEMA ICS 10, MG1, AB1; NEC 700, 701, 702; IEC 60034-1:2017
-NFPA COMPLIANT: NFPA 37 and NFPA Type 10 Level 1 capable (when equipped with the necessary accessories)
