ASCO 200 AMP Transfer Switch 3 Pole Automatic ATS Series 300 3ATSA30200CG0F

Product Description | Downloads & Datasheet

Price
$0.00
Savings:
Part Number:
3ATSA30200CG0F
Availability:
IN STOCK, Same day shipping Worldwide available
ASCO Catalog:
D03ATSA30200CG0F
In Store Pick Up:
Available Mon-Fri 9AM-5PM
Condition:
Brand New, Certified Factory Original

Quantity:

Reviews:



Product Description

200 AMP ASCO Transfer Switch, 3 Pole NEMA3R 208V
ASCO ATS Series 300 3ATSA30200CG0F

With the coming of a potential big storm on the horizon, your backup generator and ASCO Automatic Transfer Switch (ATS) will provide you peace of mind. The ASCO ATS monitors your utility power supply and on detecting a power outage tells the standby generator or another auxiliary power source to start.

What is an Automatic Transfer Switch?

The ASCO 200 Amps 3 Poles NEMA3R 208V Automatic Transfer Switch ATS, Series 300, 3ATSA30200CG0F is an electrical switch that transfers your business or home electric power between the utility power and auxiliary or tertiary power. The ATS is easily mountable on or inside your premise by a licensed contractor or electrician, and automatically detects when utility power fails. This means that customers using the ATS never have to grope in the dark as they try to flick the switch on manually.

Performance of the ASCO ATS

The compact-sized ASCO 200 Amps ATS utilizes a Group G controller (technology by ASCO) to provide steadfast operation in whichever environment it is placed in. In order to ensure that your systems are running almost seamlessly in the event of a power outage, the ATS goes through the following steps:
1. One second after failure of utility power, the 200 Amps ATS informs the generator to start
2. Within 30 seconds, electric power to your systems is restored, allowing you to work as normal
3. When utility power is back to acceptable voltage levels for a certain set period, the ATS automatically reconnects you back to your primary power source
4. For smooth shut down, your generator will run for a period of between two to five minutes before it is completely halted. The time taken before shutting down the generator is known as the cool-down period and is critical in the extension of your generator’s life
5. The control panel allows you to test the entire system with the push of a button
6. LED indicators on the control panel offer you a simple means of finding out the availability of primary and auxiliary power sources as well as transfer switch positions

Features

ASCO Power Transfer Switch rated 200 Amp

The ASCO 200 Amps 3 Poles NEMA3R 208V Automatic Transfer Switch ATS, Series 300, 3ATSA30200CG0F is a product backed by ASCO Power Technologies, the North American and worldwide industry leader in designing, engineering and manufacturing transfer switches.

The 200 Amp transfer switch was solely designed to transfer critical loads in case of power outages. To achieve this, every standard component designed by the ASCO engineers is of the highest quality, offering an impressive list of features of comparable products.

Other features that make ASCO 200 Amp standout include:
• A compact, modular design, making it easy to install, inspect and maintain
• ATS is UL 1008 standard listed in terms of the total number of system loads and has a C22.2 CSA standard for Automatic Transfer Switches
• Use of the unique ASCO single-solenoid operator
• Can be mounted on wall or floor
• The Group “G” controller

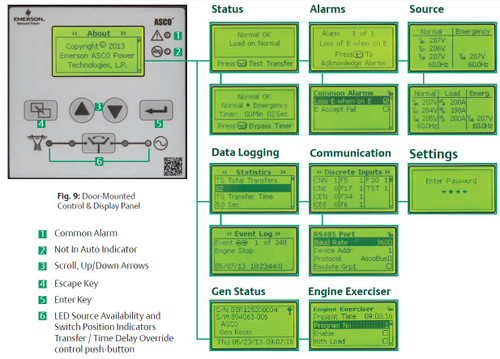

Group “G” controller

The ASCO 200 Amps Automatic Transfer Switch implements the Group “G” controller. The controller is vital for enhancing the ATS capabilities by providing reliable operation in any environment. The Group G controller has a graphical liquid-crystal display (LCD) as well as critical symbols that aid in operations and LED indicators to indicate the transfer switch status. With this controller, operating features and parameter settings are easily adjustable without anyone opening the enclosure door.

Other interesting features of Group G controller include:
• An easy-to-use 128*64 graphical LCD screen, soft keypad and LED indicators
• The controller is self-contained, meaning that you do not need to add other components to have it run efficiently
• One can use the controller to set delayed or open transition transfer operation
• A multilingual user interface for monitoring and configuration, offering greater flexibility
• It is capable of sensing the voltage and frequency (on emergency and primary sources), and does not require the use of any other external metering device

ASCO’s 200 Amps 3 Poles NEMA3R 208V Automatic Transfer Switch, Series 300, 3ATSA30200CG0F guarantees seamless, reliable power when power outages occur. The ATS will supply your business with continuous power whether you are there or not. The unique Group “G” controller allows you to do more than was possible by handing over control where it is most needed – in your hands.
